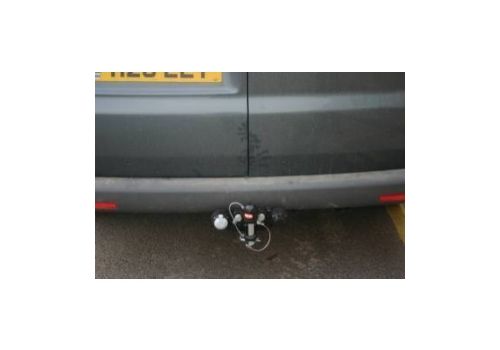

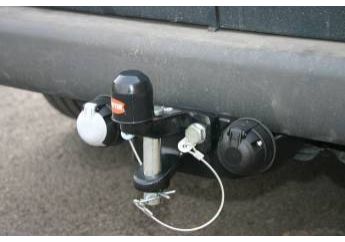

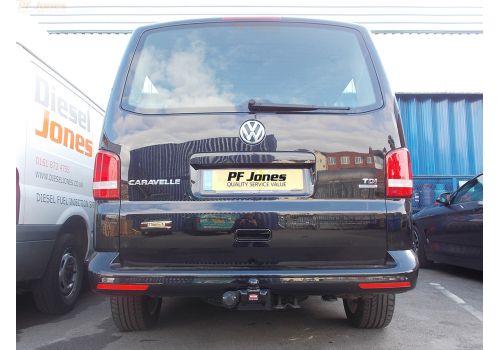

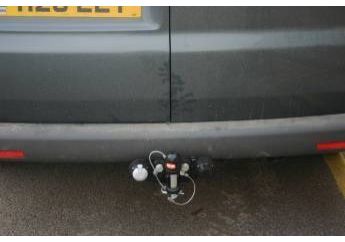

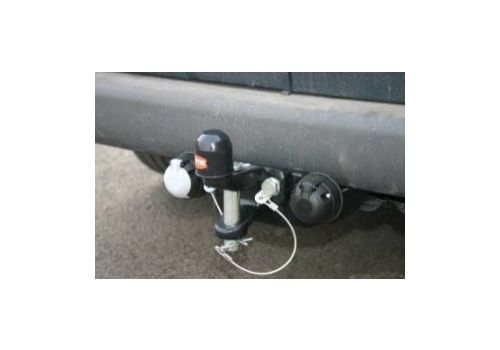

Volkswagen Caravelle 2009-2015 Witter Fixed Flange Tow bar

Home/Towbars/Volkswagen Tow bars /VW Caravelle Towbars/VW Caravelle T5 2009-2015 Towbars/Volkswagen Caravelle 2009-2015 Witter Fixed Flange Tow bar

Volkswagen Caravelle 2003 > Flange tow bar

Hover on image to enlarge

CODE: VW48C

Write a review

Shop our latest adittion, Van Seat Covers and floor mats

Towbar Features

Electrics Coding :

Required

Ball Type:

Flange

Bumper Cuts :

Bypass Required :

Yes

Towing Weight Kg :

2500

Nose Weight Kg :

100

VW T5 7 Pin Electrics (09-15)

7 Pin Kits

The socket has 7 pins, hence the name, if you are towing a trailer, cycle carrier or towing counterpart that needs power to lighting functions only, you will need a universal or dedicated 7 pin (12N) electrics kit.

Vehicle Specific Kits vs Universal Kits

The most obvious difference between a vehicle specific or dedicated wiring kit and a universal wiring kit is price with universal kits being cheaper in most cases.

We recommend dedicated electrics for any vehicle still under warranty as fitting universal wiring kits that do not specifically correspond with the vehicles electrical and wiring system will invalidate your manufacturer's warranty.

In most modern vehicles, a bypass relay s required when fitting universal kits to coordinate power between the vehicle and towing counterpart - we include a bypass in your kit for any vehicles that need it.

In some cases where a 7 pin dedicated kit isn't available for your car, we will provide you with an adapter so you can carry on using your trailer, cycle carrier or caravan.

Technical Key Words

We know that wiring kits can be confusing, and sometimes we use technical phrases and abbriviations that you may or may not understand. Here's our quick Technical Key Word Guide:

TP

TP or Trailer Preparation (also known as "Towing Preparation" or "Prepared Connector") just means that when your car was being made, the manufacturer added a special wiring connector specifically for towing - it is located at the rear of your car making it easier to fit the wiring kit. If you don't know if your car has TP or not, you will need to contact the car manufacturer.

Bypass

Only used on universal kits, a bypass is a box that allows the wiring to bypass the vehciles faults system when you install and cut the wiring loom on vehicles with CANBUS systems. We have included a bypass in your kit if your car requires it - make sure you buy the right year towbar to ensure you are getting the right universal electrics kit.

For a full explanation of towing electrics click here

VW T5 13 Pin Electrics (09-15) :

Electric Socket Adapters:

Towball Type:

Accessories:

Quantity:

+ −

£112.60

Price Includes VAT

Shipping Cost

Country

State/Province

Zip/postal code

Amount

Download fitting instruction

Fitting cost

Help & Advice

Description

Volkswagen Caravelle 2009-2015 Witter Fixed Flange Tow bar

For models produced from 2011 To guarantee an optimal fit of the bumper it is necessary to mount - 1 x plastic rail 7H0 807 723 - 8 x gasket 357 853 586 B - 8 x clip 7H0 867 299 01C

KIT INCLUDES:

1 Cross Bar with European facing to 94/20/EC A50-1
1 Coupling Packer
4 M12 x 40 x 1.75, Lock Washers and Flat Washers (40mm O.D.) and Special Nut Retainers with Square T Nuts
2 M12 x 40 x 1.75, Nyloc Nuts and Flat Washers (40mm O.D.)
2 Nut Insert plates
1 ZEP35 Electrical plate
2 M16 x 60mm Coupling Bolts, Nuts, Lock Washers
1 Towball Neck

Tow bar demonstration video
