Coding is required to tell the vehicles ECU that a towbar is present so the towing electrics will function properly. This is done with a diagnostic tool, and may need to be done by the main dealers.
:
Not Required
Ball Type:
Detachable
Detachable Type:
Automatic Horizontal
Bumper Cuts
Bumper cuts are cut on the underside of the bumper.
None visible : the cut will not be visible unless you look up at the bumper from the ground.
Visible: the cut will be visible when standing behind the vehicle.
No cut: No cutting required.
:
Visible
Bypass Required
Many modern vehicles require a bypass relay for the towbar electrics to work correctly. If your vehicle requires this relay then damage can occur to the cars electrics if one isn't fitted.
Our data is collected from the tow bar and tow bar wiring manufacturers with regards to whether your vehicle needs a bypass relay.
:
Yes
Model Exclusions:
Hybrid
Towing Weight Kg
This is the maximum weight that the vehicle can tow.
:
1648
Nose Weight Kg
This is the maximum weight that the placed on the ball, ie the average adult bike weighs around 15KG, 15 x 4 = 60 KG and a cycle for 4 bikes is around 20KG = 80KG.
:
75

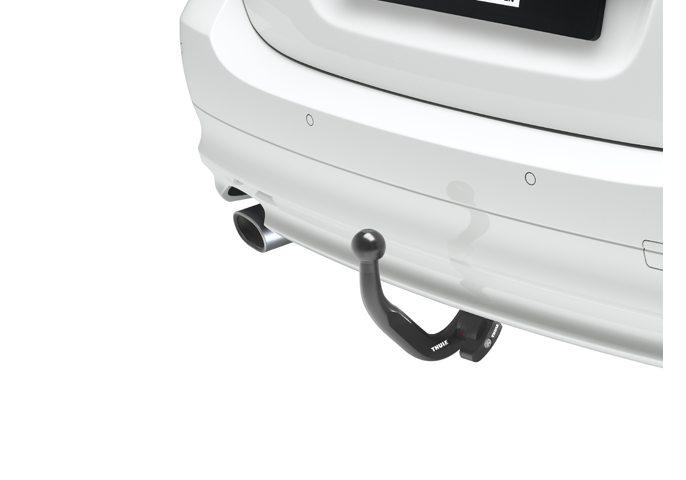

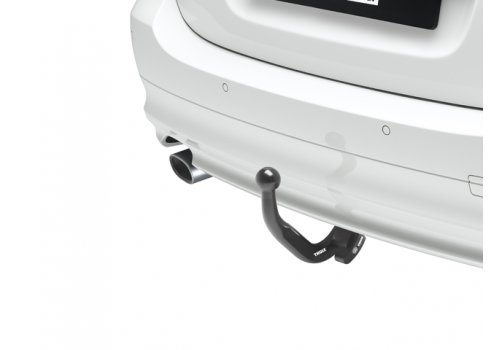

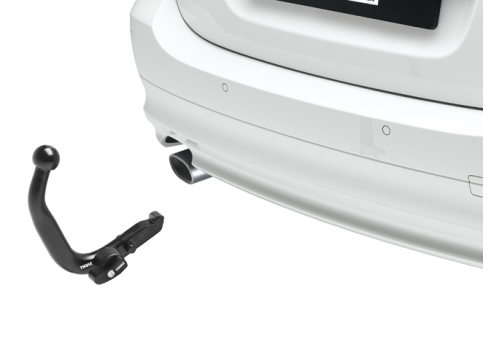

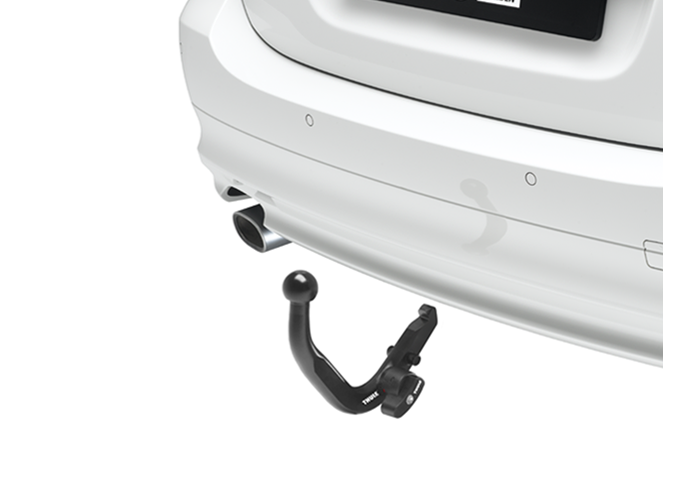

Toyota Auris Estate 07/2013-12/2018 Brink Detachable Towbar
Return and exchange As a PF Jones customer, if you no longer want the items you have 14 days to cancel your order or inform us you would like to return the goods.
Description
Toyota Auris Estate 07/2013-12/2018 Brink Detachable Towbar
Hello
I would like to buy Towbar for Toyota Auris Touring Sport 2014 (1,6 97kW), I think this should be suitable for my car, or isnt it`?
I live in Estonia (Europe :) how much would be the postage? It can be general postage, I do not need any speedy delivery.
If this is not suitable for mine car what would you suggest? I was watching also
https://www.pfjones.co.uk/toyota-auris-sports-tourer-jul-2013-on-westfalia-detachable-towbar.html
Probably this is even better or what do you think? I wish to have somethig what is preferably not visible at all, when it is not attached to the car.
Thank you very much in advance
Best Regards
Martin
Hello Mr Zagora, As long as your vehicle isn't a hybrid you can have the Brink or the Westfalia towbar. The Brink one requires a visible bumper cut, so when the neck is removed you would see the cut out in the bumper and the electric socket would also be visible. The Westfalia towbar requires a non-visible bumper cut so when the neck is removed you will not be able to see the cut out and the electric socket pivots up behind the bumper. The only part you will see is the loop for the brake-away cable, this has to be lower than the bumper so the brake-away cable doesn't chafe on the bumper. There is only one rate of carriage to Estonia, and it's £40. Thank you
Hello PFJones team
I would like to purchase Westfalia towbar https://www.pfjones.co.uk/toyota-auris-sports-tourer-jul-2013-on-westfalia-detachable-towbar.html
Toyota AURIS touring sport 2014 (1,6 132hp)
I have 7 pin univarsal electric kit, can you help me with: Do I need also Bypass for my car, or it is not required?
Thank you in advane
Best Regards
Martin
Hello Mr Zagora,
Westfalia detachable 335426 £217.00 and yes, your vehicle does require a by-pass relay. We have the ZR2500 in stock for £17.50
Please let me have your billing address and shipping address if different, and your preferred method of payment. We take card payment over the phone, PayPal, or BACS transfer.
I can raise a proforma invoice and email it back to you.
thank you
Hello
That is fine, I will pay through PayPal, will order through your page, I think that the easiest :)
If you think I do need something else just let me know, I will order Westfalia towbar + ZR2500, is the general 7pin univarsal kit compatible with the ZR2500 or do I need some special 7pin kit for that?
Thank you very much for your help, I very appreciate
BR
Martin
Hello Mr Zagora,
That's fine, thank you.
Yes the ZR2500 is compatible with the standard 7 pin wiring kit and nothing else is required.
Thank you for your order,
