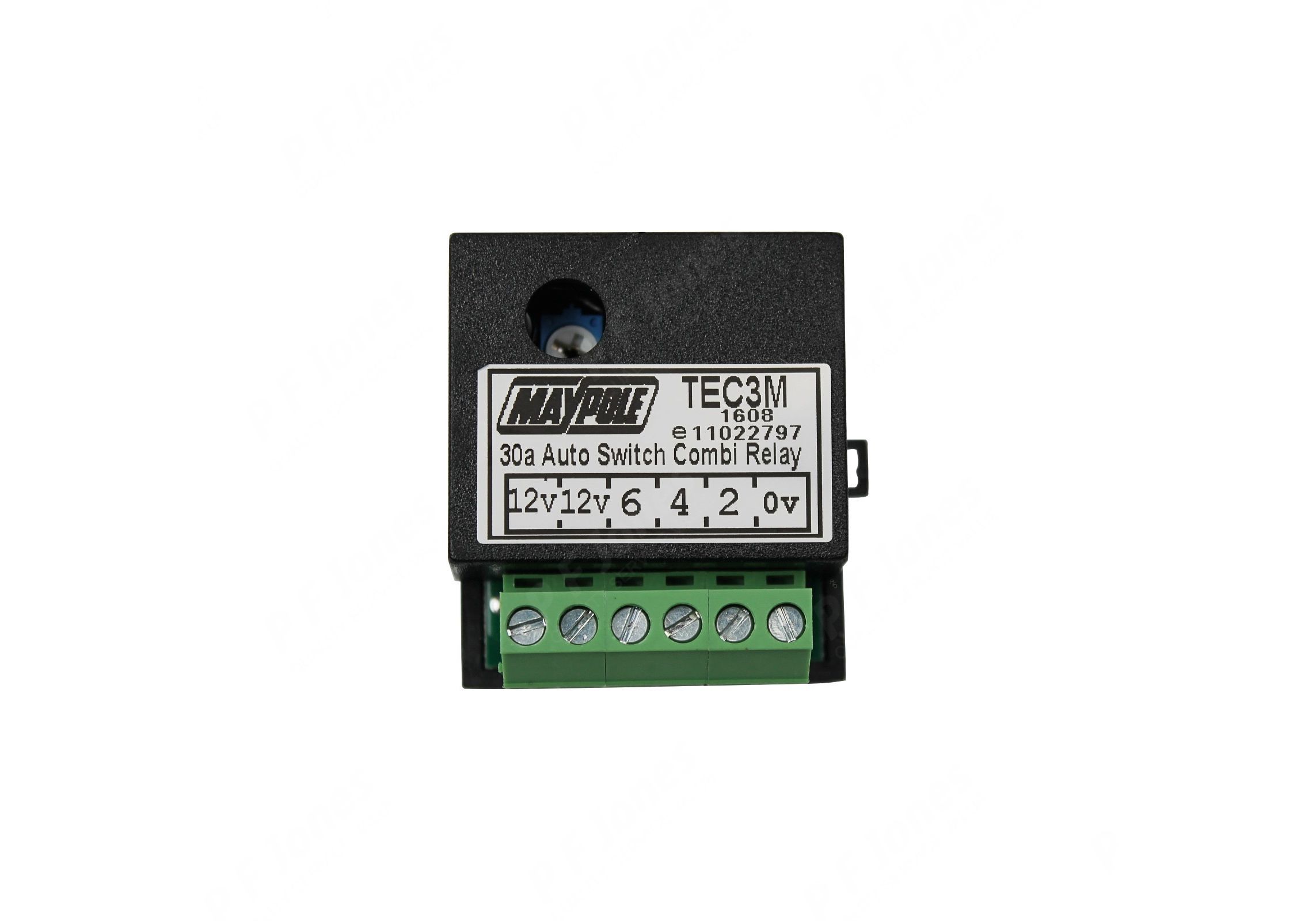

Towbar electrics Charge relay TEC3M

Hover on image to enlarge
TEC3M

Shop our latest adittion, Van Seat Covers and floor mats


+ −
£8.99
Price Includes VAT
Shipping Cost
Questions
Help & Advice
Description



Towbar electrics Charge relay TEC3M



Split charge relay

Wiring info as follows

12v Permanent fused live (30amp fuse)

0v Earth

2 - Pin 2 in the 12s socket (grey)/ Unused in the 13 pin socket.

4 - Pin 4 in the 12s socket (grey)/ Pin 9 in the 13 pin socket.

6 - Pin 6 in the 12s socket (grey)/ Pin 10 in the 13 pin socket.



High Output Combination Caravan Relay with automatic monitoring and switching of supply from car to caravan through double (split charge) relays.

Features

  • Very compact but powerful efficient design, giving the largest output in the smallest package
  • Automatic monitoring of voltage and current availability from car’s alternator/battery
  • No separate signal wire necessary
  • Able to switch up to 30a continuously when available from car’s alternator/battery
  • Adjustable factory set voltage trip with narrow band hysteresis
  • Over temperature protection
  • Line voltage drop compensation
  • Low voltage drop (around 0.1v) at rated output
  • Very high quality micro miniature 30a relays
  • Fully snubbed for EMC compliance





Similar Products
Customers also bought
Reviews
Mike
03/04/2018, 08:33
This product was to fit into a new Shogun for dedicated 13 pin electrics. Usually you get a warning bleep when the 'caravan' indicator is flashing - this unit is silent in its use. If an indicator bulb has failed, the unit should flash at twice the normal rate - this is not always so. Also it can happen that the trailed vehicle electrics become disconnected, in which case you get no warning at all. - It was the only dedicated wiring 13 pin unit I could find for a Shogun. It came from Right Connections. Not the fault of pfJones
Reinhold Behringer
01/03/2016, 18:06
Is a very simple device which manages charging a leisure battery from the vehicle electrics (alternator). Can be used for up to 30 Amp current, and is easy to install. Would be great if there was a whole for attaching this device with a screw to any installation. Since there is no such attachment provision, the relay only can be affixed with Velcro or double tape.
Howard Saunders
06/02/2016, 09:45
First class product direct replacement
Write a review
Q & A

30/04/2025, 10:25 | 1 answer(s)

30/04/2025, 10:25 | 1 answer(s)

Hi. I have the standard 7 pin socket for lights only, on my octavia but now I have bought a caravan with the new 13 pin. Do I use this relay to power charging and fridge as well as the relay I have at the moment or is there a different one I need. Many thanks.

Asked by Tim matthews | 05/05/2017, 15:39 | 1 answer(s)

hi recently fitted a combi rely auto switch got all side lights and break lights but no indicators or bleeping can you help me please

Asked by david marshall  | 15/04/2017, 18:09 | 1 answer(s)

I have a Dacia duster with a euro 6 engine would a split relay work with this engine, I only need to have the fridge on in the caravan when towing as I use hookups,

Asked by Keith burke | 16/12/2016, 11:57 | 1 answer(s)

I'm running A TEC3M relay to power my fridge connected to a 15 plate Vauxhall Insignia while travelling . The problem is due to the charging circuit being a smart system when the battery reaches fully charged state the altenator charging is turned down and the battery voltage drops to 12.75 volts which turns off the relay , I can restore the fridge operation by turning on the head lights and loading up the altenator . Do you have a fix for this ? could I reset the trimmer to lower the threshold trigger voltage ? Thanks Joe Haynes

Asked by Joe Haynes | 27/07/2016, 12:59 | 1 answer(s)

Hi, We are looking to use your relay in a telematics solution where the run feed cannot be sourced on a vehicle. Please can you send me a datasheet for this product?

Asked by James McConnachie | 18/03/2016, 09:25 | 1 answer(s)

The current relay in the car starts bleeping ever 1.5 mnute I have checked it and it feels warm. When it is shut of for a while (fuse removed) it s ok for a while. Do you think it is the relay?

Asked by Gordon King  | 23/01/2016, 03:42 | 1 answer(s)

Hi, Please can you help? On the TEC3M Relay do I have to run 2 seperate fused wires from the battery to the 12v terminals. I require to charge the caravan battery and run the fridge. Regards Martin

Asked by M Lane | 17/08/2015, 21:01 | 1 answer(s)
