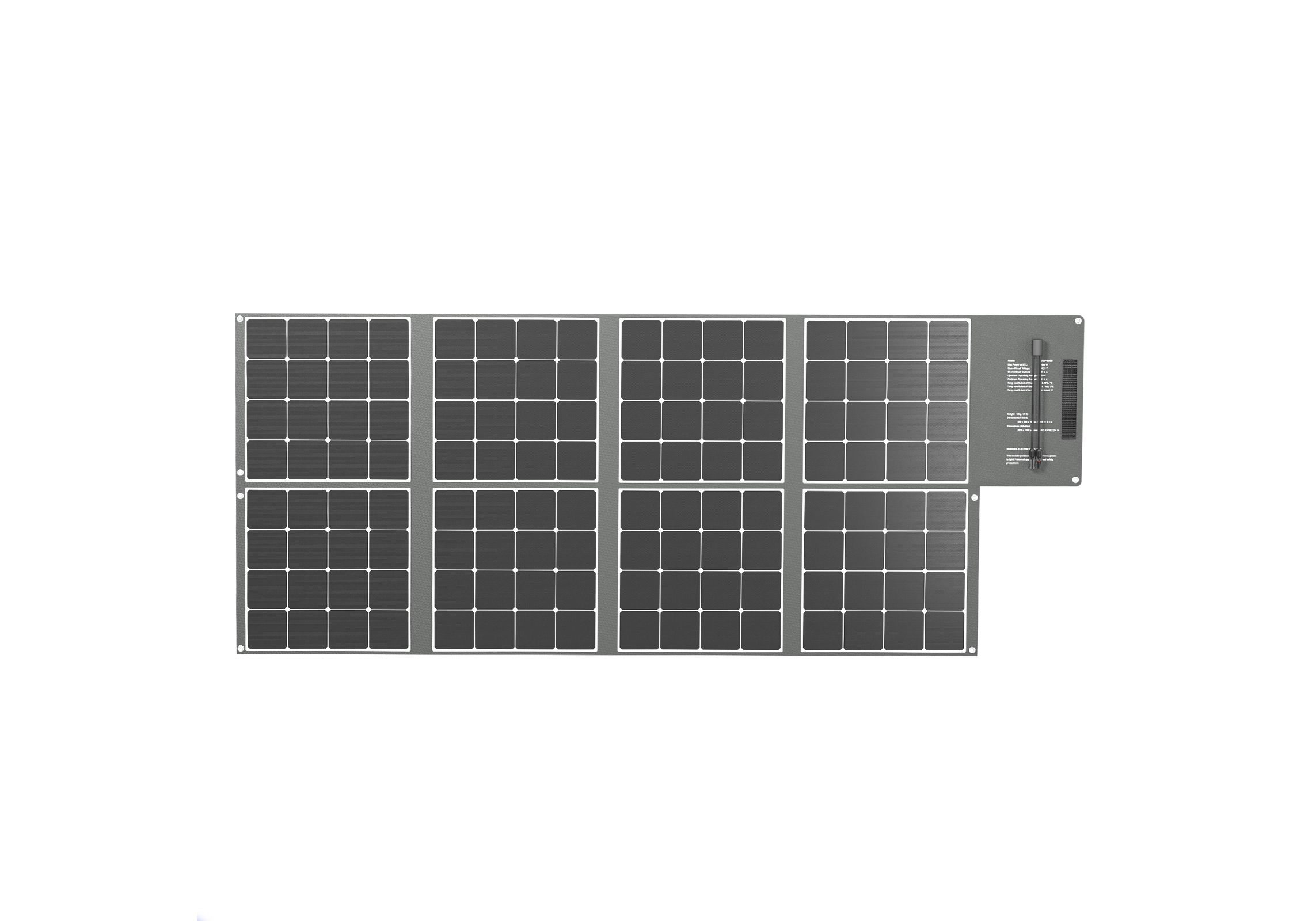

Renogy 400W N-Type Portable Solar Panel Blanket
Renogy 400W N-Type Portable Solar Panel Blanket
Renogy 200W/400W Solar Blanket uses high-efficiency Mono N-Type solar cells for stable, reliable power generation. Equipped with built-in MC4 connectors and USB outputs (on the 200W model only), Solar Blankets support direct charging of power stations, batteries, and small devices like phones and laptops (200W model only). Its foldable, space-saving design enables easy storage and transport.
Ultra-Lightweight and Foldable
Multi-fold structure (8-fold for 200W model, 16-fold for 400W model) delivers power in a compact, backpack-sized form for easy storage and transport.
Flexible Setup for Mobile Use
Supports ground placement, vehicle placement, or hanging for the best solar exposure.
N-Type Cells Up to 25% Conversion Efficiency
Advanced N-Type solar cells with a 16BB structure deliver up to 25% conversion efficiency, maximizing energy output from a limited surface area.
Versatile Off-Grid Power Compatibility
Equipped with standard solar connectors and output interfaces to charge portable power stations and 12V/24V battery systems.
Durable Construction for Outdoor Operation
IP65-rated and reinforced structure ensures reliable performance. An integrated carrying handle and complementary straps feature for easy handling.
| Maximum Power at STC | 400W |
| Optimum Operating Voltage (Vmp) | 33.6V |
| Optimum Operating Current (Imp) | 11.9A |
| Maximum System Voltage | 600VDC |
| Solar Cell Type | Mono N-Type |
| Number of Cells | 224 (2 x 7 x 16) |
| Front Film | TPO |
| Connectors | Solar Connectors |
| Operating Temp. Range | 14°F to 149°F / -10ºC to 65ºC |

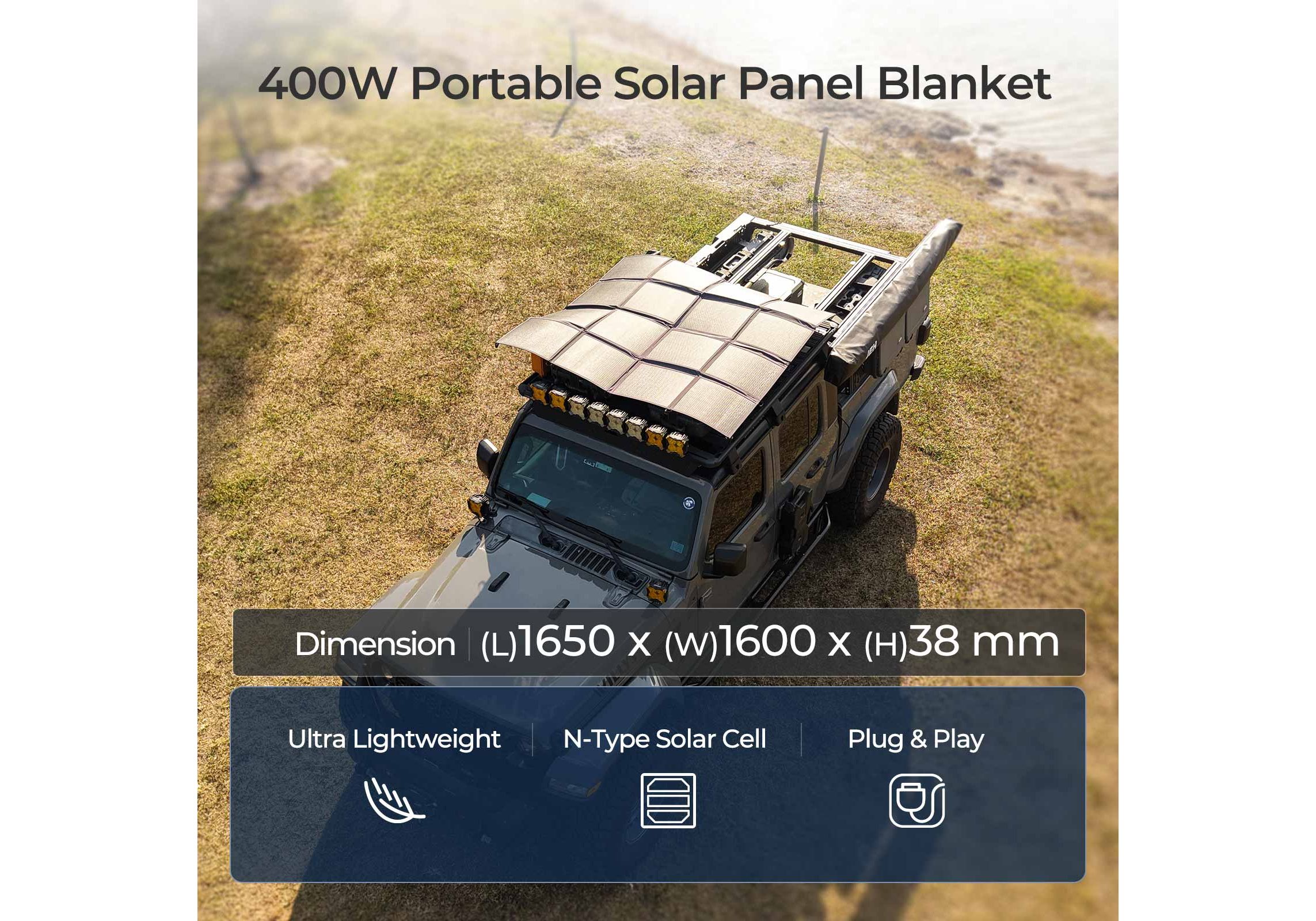

| Dimensions Folded (mm) | 420 x 402 x 105 |
| Dimensions Unfolded (mm) | 1,650 x 1600 x 38 |
| Weight (KG) | 7.3 |
| Certification | FCC, IC, PSE, CE, ROHS, TSCA, CA65 |
