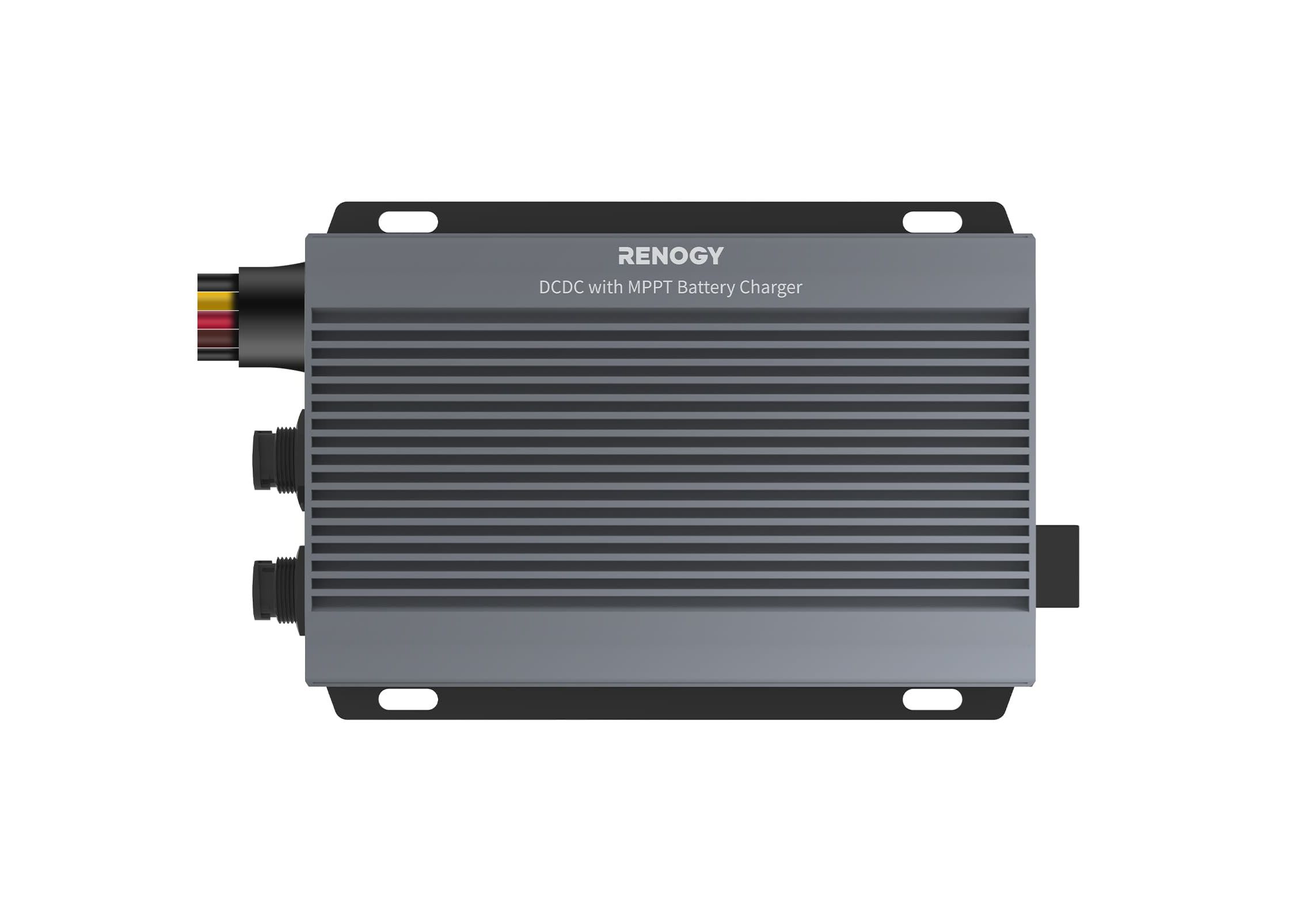

Renogy 12V/24V IP67 50A DC-DC Battery Charger with MPPT
Renogy 12V/24V IP67 50A DC-DC Battery Charger with MPPT
The RENOGY 12V/24V 50A IP67 DC-DC Battery Charger with MPPT supports dual input charging from vehicle alternators and solar panels for 12V/24V battery systems. Intelligent buck-boost charging logic automatically prioritizes solar power while maintaining stable output from the alternator or generator.
Rated at 50A with up to 720W output, the charger safely delivers reliable, efficient charging for house batteries in RV, marine, and other mobile power applications. The slim, IP67-rated waterproof enclosure allows flexible installation in tight or exposed spaces while ensuring continuous operation in harsh environments.
Intelligent Dual-Charging Mode
Automatically switches between starter battery and solar/generator inputs, prioritizing solar power for optimal house battery charging.
High-Power Output
Rated 50A with up to 720W output for efficient house battery charging and reverse charging to the starter battery.
Bluetooth & CAN Monitoring
Built-in Bluetooth for real-time monitoring via the Renogy app, plus CAN support for wired communication.
Compact & Durable Design
Lightweight, IP67-rated waterproof enclosure ensures flexible and safe installation.
Wide Operating Temperature
Operates from -31°F to 176°F / -35°C to 80°C, supporting full output up to 131°F / 55°C.
| Battery Type | AGM/SLD, GEL, FLD, LI, User |
| System Voltage | 12V/24V |
| Rated Charge Current | 50A |
| Input Voltage Range | 9V to 32VDC |
| Self Consumption | <100mA |
| OperatingTemperature | -31°F to 176°F / -35°C to 80°C (Full Rated Output up to 131°F / 55°C) |
| Storage Temperature | -40°F to 176°F / -40°C to 80°C |
| Dimensions (mm) | 178.2 x 121.5 x 37.5 |
| Weight (KG) | 1.52 |
| Certification | CE, R10, FCC, RCM |
