Renogy 100W Flexible Monocrystalline Solar Panel Black
Renogy 100W Flexible Monocrystalline Solar Panel Black
Flexible solar panels are suitable for curved surfaces and weight-limited installations where drilling is not ideal. They conform to vehicle roofs and other non-flat surfaces for a cleaner, lower-profile fit.
Ultra-thin and lightweight, with the capability to bend up to 240 degrees, flexible solar panels are around 70% lighter than their traditional rigid counterpart. With an IP67-rated junction box and solar connectors, flexible panels deliver dependable outdoor performance.

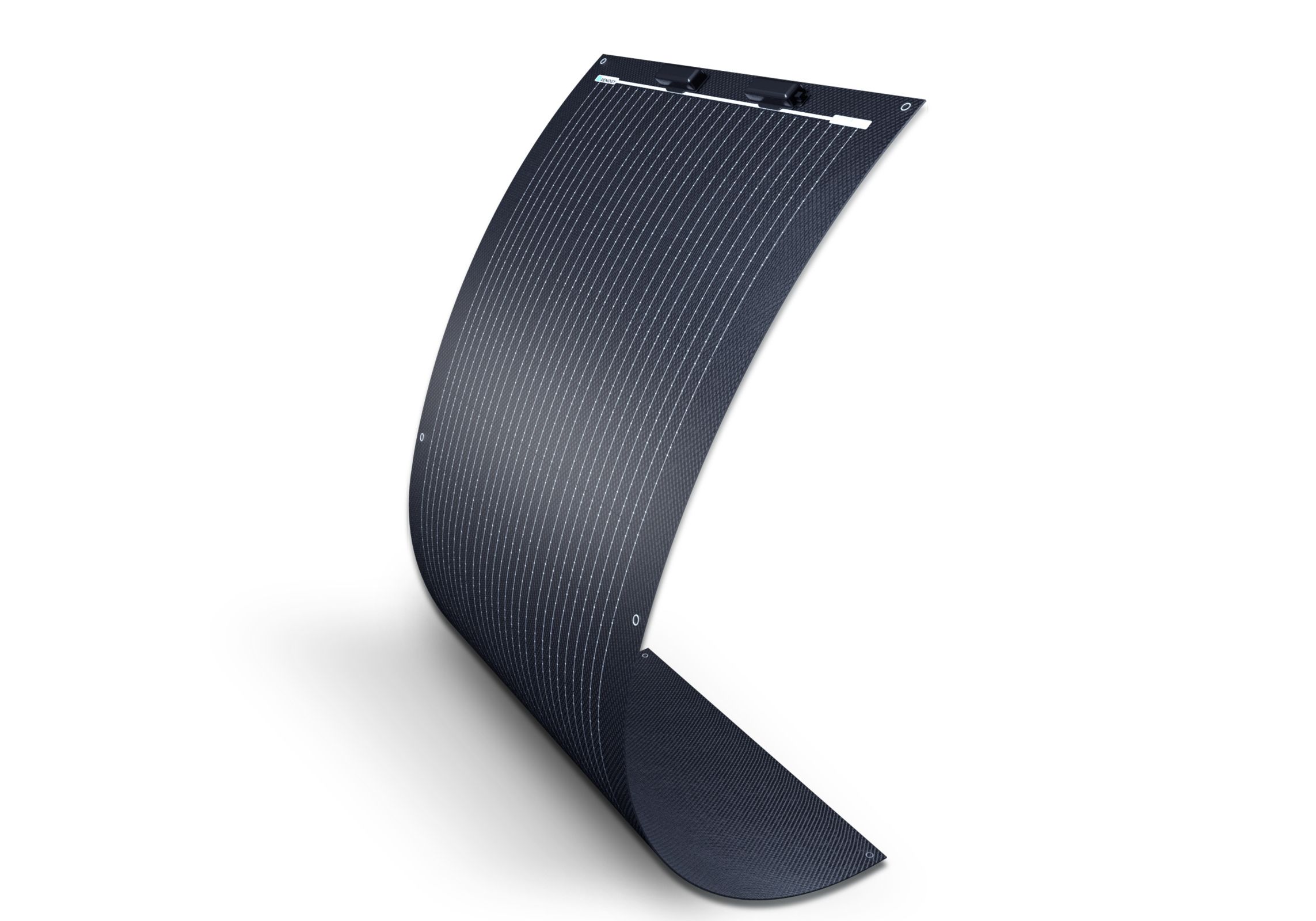

Extreme Flexibility Up to 240°
Supports bending up to 240° (248° for RNG-175DB-H) for curved and irregular surfaces where rigid panels are not applicable.
70% Lighter, Easier to Install
Advanced polymer materials reduce weight by approximately 70% compared to conventional panels, simplifying transport and installation.
Ultra-Thin Lamination

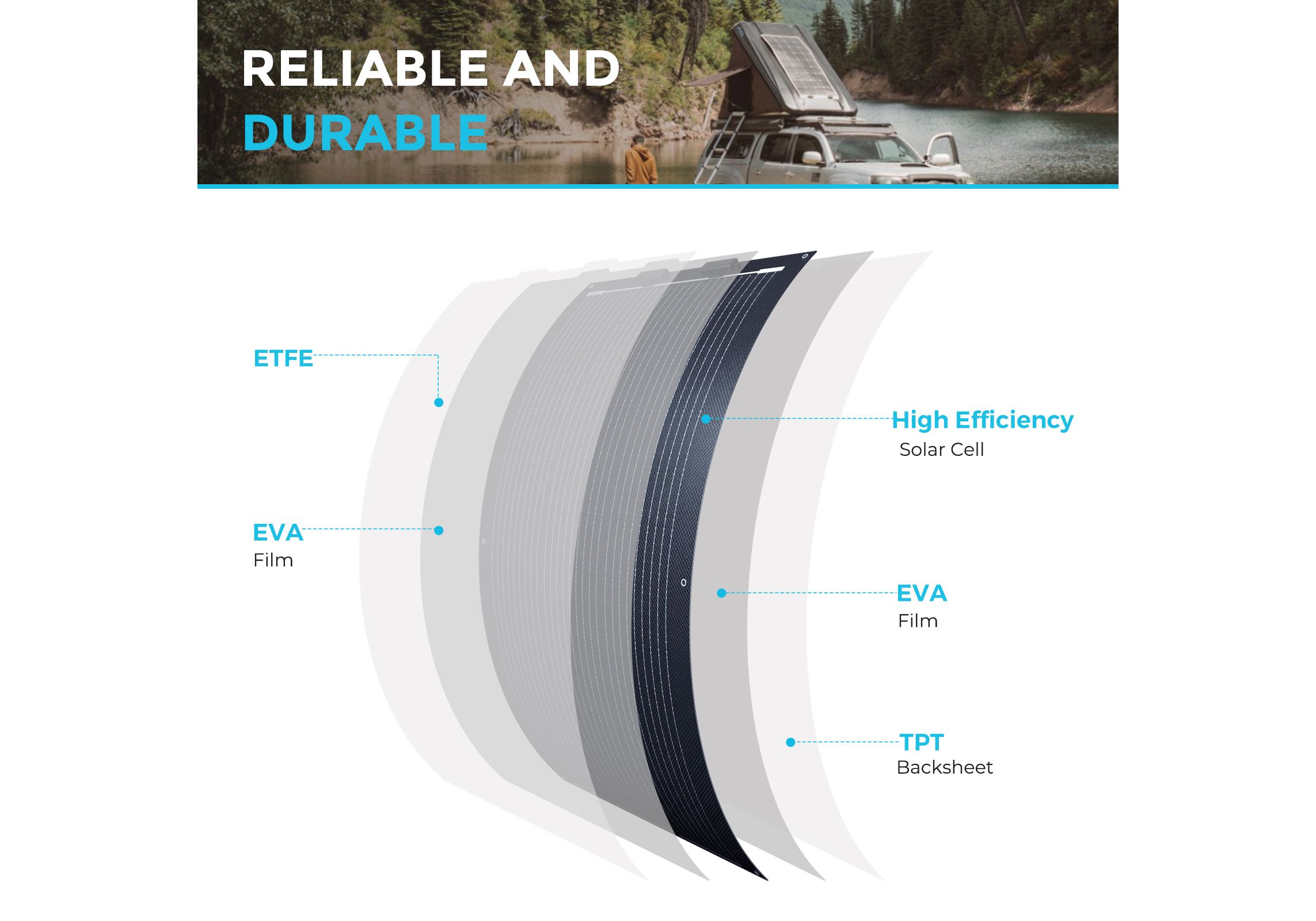

Well laminated with 0.08in-thick ETFE material. The anti-scratch, durable ETFE film protects the cell for outdoor use, and its high transparency enhances conversion rates.
High Daily Energy Yield
9BB PERC cells with half-cut technology enhance energy conversion efficiency and reduce thermal and shading-related power loss.
Quick and Cost-Effective Mounting
This panel comes with pre-drilled mounting holes and is compatible withsilicone structural adhesive, enabling simple, drill-free installation.
| Maximum Power at STC | 100W |
| Optimum Operating Voltage (Vmp) | 19.4V |
| Optimum Operating Current (Imp) | 5.20A |
| Maximum System Voltage | 600VDC |
| Solar Cell Type | Mono PERC |
| Number of Cells | 36 (3 x 12) |
| Front Film | TPO |
| Connectors | Solar Connectors |
| Operating Temp. Range | -40°F to 185°F / -40ºC to 85ºC |

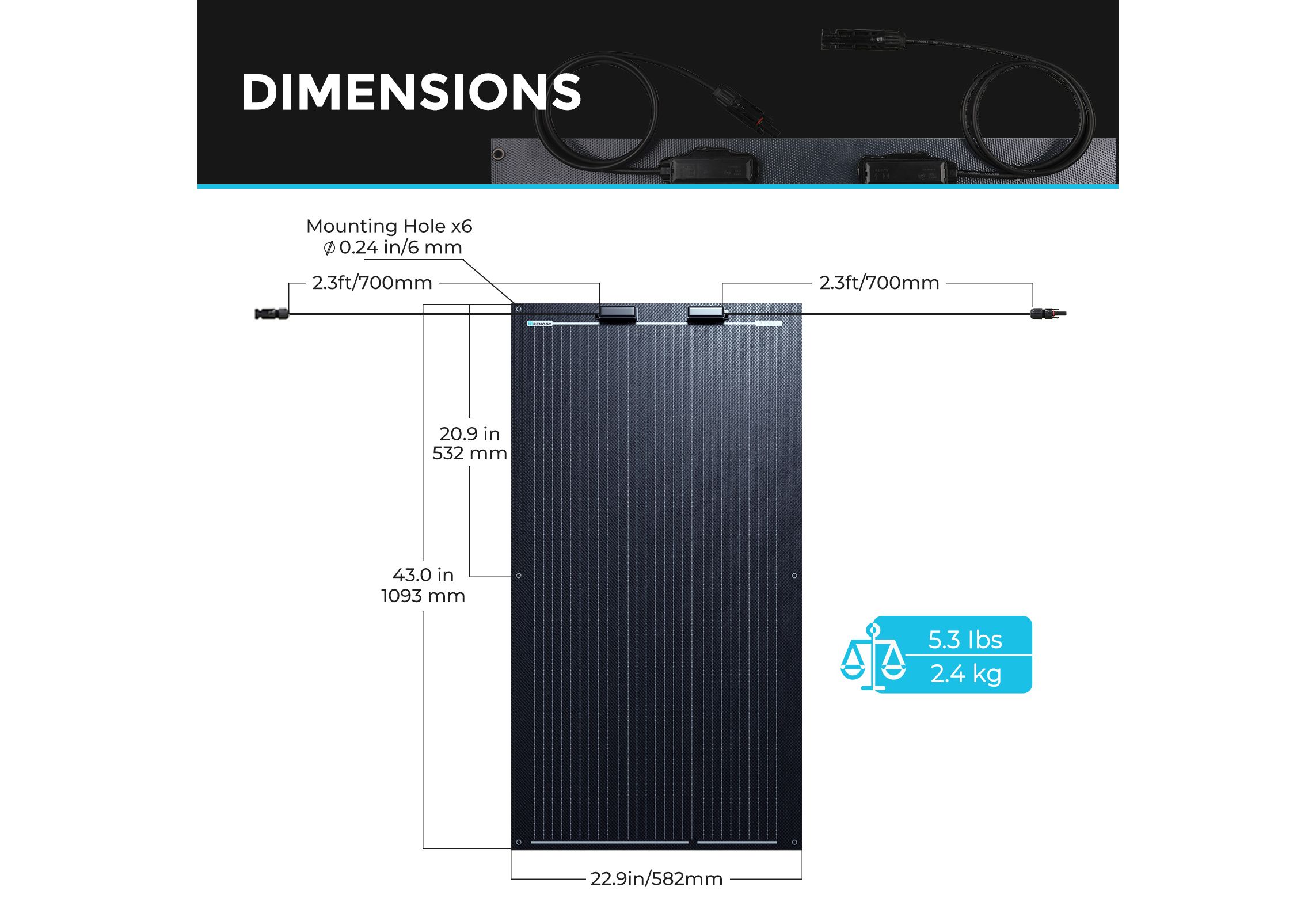

| Dimensions (mm) | 1,093 x 582 x 3 |
| Weight (KG) | 2.4 |
| Certification | CE |
![]()
