Planar 2D-12-TM Air Heater 2kW/ 12V - Volkwagen T5/T6 Kit (External Mount)
VW T5/T6 Kit Upgrade includes fuel stand pipe, mounting plates and ducting.
Autoterm Planar 2D is a compact heater model produced by heating experts Autoterm. This heating system can be used in crew cabins and work spaces of motorhomes, commercial vans and trucks as well as boats that are up to 10m long.
Capacity of the heater is between 0.8 kW and 2 kW which makes it capable of heating up to 75m3 of air per hour while mainting a economic level of diesel (0.1 l - 0.24 l diesel consumption per hour). This model is 12 v but a 24 v model is also available.
The main advantages of AUTOTERM heaters are stable operation at very low temperatures, inductive (brushless) electric motors designed for uninterrupted operation for 12,000 hours, as well as low fuel consumption and reasonable price.
This Planar 2D heater is available with a digital control panel as standard (if you prefer a different control panel please select on the drop down above).
- PARTS & ASSEMBLY CATALOGUE
- INSTALLATION INSTRUCTIONS
- OPERATION MANUAL
- PU-5 CONTROL PANEL - OPERATING MANUAL
- REPAIR MANUAL
|Air heater Planar-2D-12-TM|

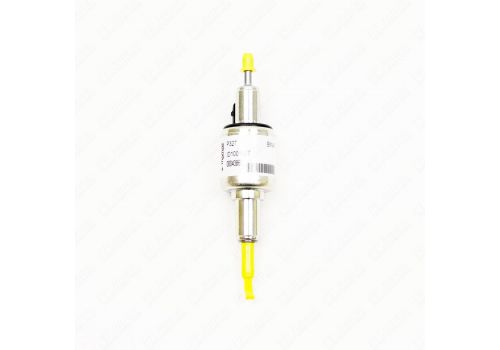

|Fuel pump 12V|
|Control panel (Digital PU22 can be switched for a PU5 Rheostat (+£0.00) or a PU27 7 day timer control (+£45.00))|
|Connecting pipe nylon 10m|

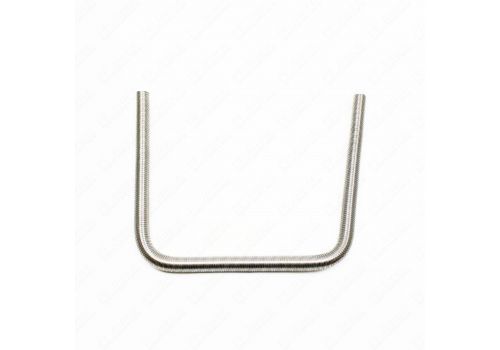

|Exhaust pipe 1m|
|Exhuast silencer with mounting kit|
|Air intake hose with silencer|
|VW T5/T6 fuel stand pipe|

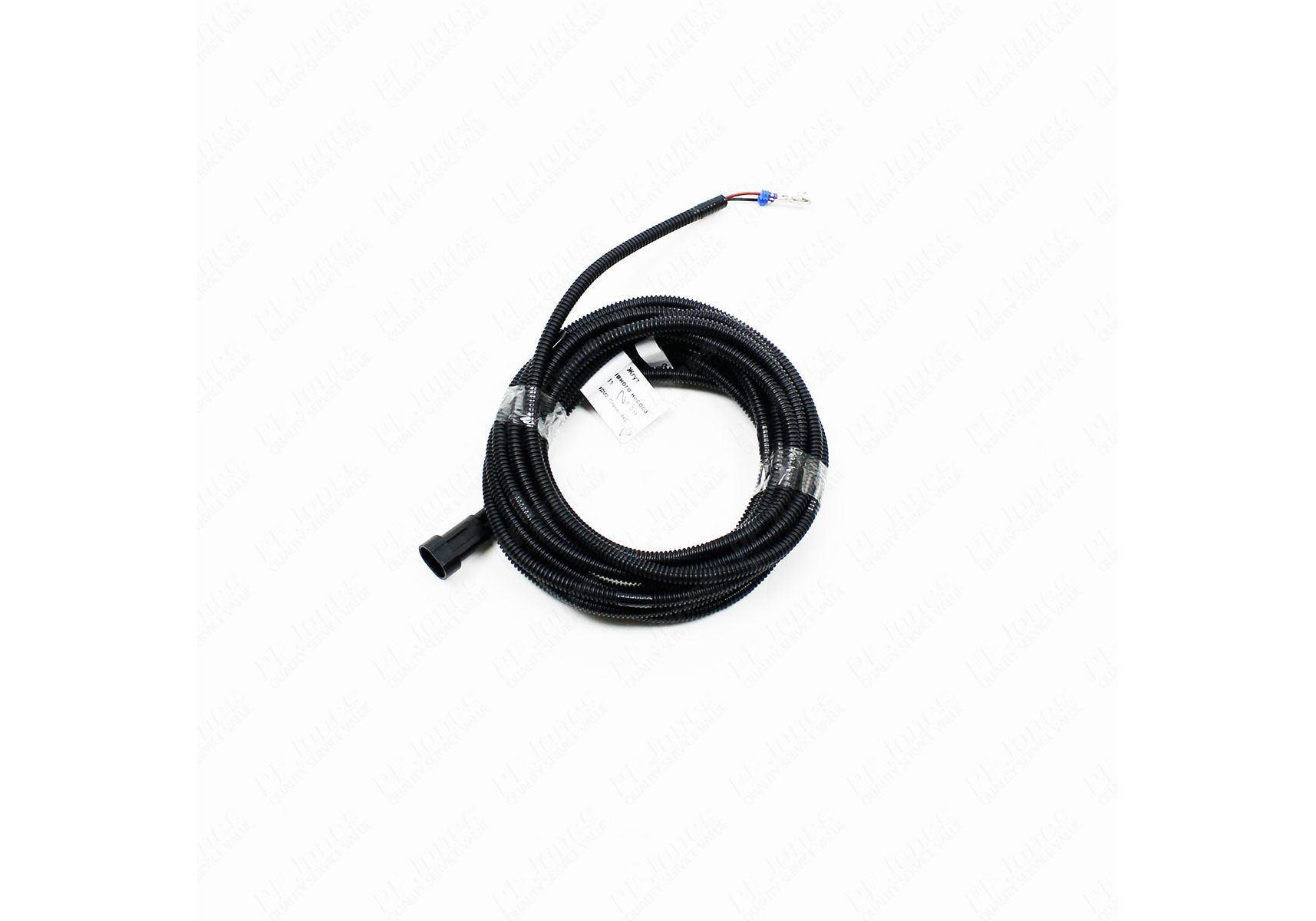

|Power supply cable|
|Fuel pump cable|
|Control panel wire|
|Heater power, kW||Fuel consumption, l/h||Rated power consumption, W||Heated air volume, m3/h||Fuel||Rated voltage, V||Control mode||Weight, kg|
High - 2.0
Low - 0.8
High - 0.24
Low - 0.1
High - 29
Low - 10
High - 75
Low - 34
|Diesel fuel as per GOST 305||12||Manual, standard remote control, modem||6|
