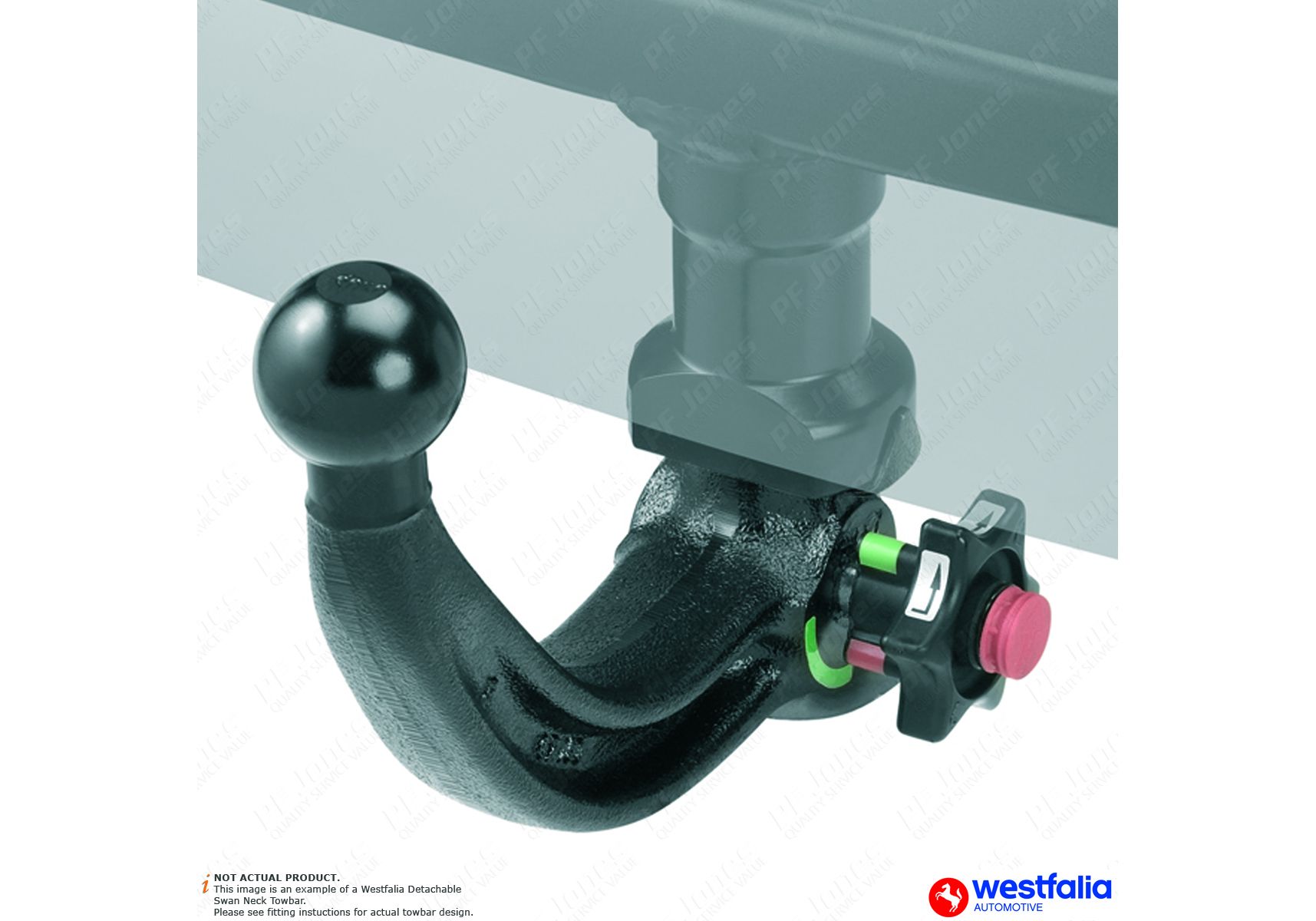

Peugeot Boxer Van 2006 Onwards Westfalia Detachable Towbar

Home/Towbars/Peugeot Tow bars /Peugeot Boxer Towbars/Peugeot Boxer Van/Peugeot Boxer Van 2006 Onwards Towbars/Peugeot Boxer Van 2006 Onwards Westfalia Detachable Towbar

Hover on image to enlarge

CODE: 306491600001

Write a review

Shop our latest adittion, Van Seat Covers and floor mats

Towbar Features

Electrics Coding :

Not Required

Ball Type:

Detachable

Detachable Type:

Automatic Vertical

Bumper Cuts :

Non Visible

Bypass Required :

Yes

Towing Weight Kg :

3000

Nose Weight Kg :

150

Note: Please See Description

Peugeot Boxer 7 Pin Electrics (Van 06-)

7 Pin Kits

The socket has 7 pins, hence the name, if you are towing a trailer, cycle carrier or towing counterpart that needs power to lighting functions only, you will need a universal or dedicated 7 pin (12N) electrics kit.

Vehicle Specific Kits vs Universal Kits

The most obvious difference between a vehicle specific or dedicated wiring kit and a universal wiring kit is price with universal kits being cheaper in most cases.

We recommend dedicated electrics for any vehicle still under warranty as fitting universal wiring kits that do not specifically correspond with the vehicles electrical and wiring system will invalidate your manufacturer's warranty.

In most modern vehicles, a bypass relay s required when fitting universal kits to coordinate power between the vehicle and towing counterpart - we include a bypass in your kit for any vehicles that need it.

In some cases where a 7 pin dedicated kit isn't available for your car, we will provide you with an adapter so you can carry on using your trailer, cycle carrier or caravan.

Technical Key Words

We know that wiring kits can be confusing, and sometimes we use technical phrases and abbriviations that you may or may not understand. Here's our quick Technical Key Word Guide:

TP

TP or Trailer Preparation (also known as "Towing Preparation" or "Prepared Connector") just means that when your car was being made, the manufacturer added a special wiring connector specifically for towing - it is located at the rear of your car making it easier to fit the wiring kit. If you don't know if your car has TP or not, you will need to contact the car manufacturer.

Bypass

Only used on universal kits, a bypass is a box that allows the wiring to bypass the vehciles faults system when you install and cut the wiring loom on vehicles with CANBUS systems. We have included a bypass in your kit if your car requires it - make sure you buy the right year towbar to ensure you are getting the right universal electrics kit.

For a full explanation of towing electrics click here

Peugeot Boxer 13 Pin Electrics (Van 06-) :

Distance Tubes for XL/L4 models only:

Electric Socket Adapters:

Towing Accessories Swan :

Quantity:

+ −

£416.69

Price Includes VAT

Shipping Cost

Country

State/Province

Zip/postal code

Amount

Download fitting instruction

Fitting cost

Help & Advice

Description

Peugeot Boxer Van 2006 Onwards Westfalia Detachable Towbar

For vehicles with long superstructure L4/XL please order separately a set distance tubes to strengthen the framework, no. 906270650003.

Some vehicles 03/08- do not have chassis holes. In this case it is necessary to drill them subsequently.

Vertical detachable tow bar demonstration video

Still unsure if this is the right bar for you?

Call

0161 872 4755

Collection Available from any of our 3 depots

More info on types of tow bars here

More info on tow bar electrics

Similar Products

Reviews

No posts found

Write a review

Q & A

Hi, Just a question about the towbar for boxer 2015, with the detachable one 306271, do I need to order the extra bolts as per instructions --906 270 650 002? Also have you any knowledge of Sargent EM40 unit which is fitted to my Motorhome, the bit in question is it has a fuse allocated for towbar+, but there is no plug supplied to connect the wire into, I could use a piggyback fuse if non available. Hope this makes sense, thanks for any help Richard

Asked by Richard Germain | 29/02/2016, 02:23 | 4 answer(s)

Hello Mr Germain, The instructions just say M8 nuts are required on certain vehicles, so you could order a set just to be on the safe side. I don't know what a Sargent EM40 is so I googled it, but didn't get very far. Is your motorhome a plastic boddied motorhome, or a panel van which has been converted? Is your passenger seat standard or is it a swivel one? thank you

Answered by Phil | 29/02/2016, 03:20 Add answer

Hi Phil, Thanks for your reply, It is a panel van conversion on a Boxer 2015 5.9m L done by Autosleepers Warwick model, the passenger seat does swivel. I suppose I could always take a feed from the Vehicle battery via a fuse, as I did on my last van, VW T5, which I bought the towbar from you and wired it up via bypass etc with no problem. Just a bit concerned also about drilling the holes mentioned in your instructions. Hope this helps. Regards Richard

Answered by Richard Germain | 20/12/2016, 16:40 Add answer

Hello Mr Germain, Looking at the towbar instructions I searched for 'drill' but there were no matches. Please tell me what page you are on. The electrics are the main concern, The VAN kit might need internal fixtures and fittings to be removed or modified in order to run the wires through the van Sometimes we can use the CHASSIS CAB kit but that comes up through the floor under the passenger seat. Motorhomes are difficult You could use the bypass kit, but that would void the warranty on the van Thank you.

Answered by Phil | 29/02/2016, 05:00 Add answer

Hi Thanks again page 3 and 13 of the Westfalia instructions detail the drilling. Will have to think about the electrics, I intended to splice into the wiring to the rear lights, and hide the bypass in the leisure battery compartment which is adjacent to the rear door and light cover. Regards Richard

Answered by Richard Germain | 29/02/2016, 05:17 Add answer

Hi, Having just changed my Motorhome from a vwT5 on which I fitted one of your Westfalia towbars, I am looking at buying one for my Peugeot boxer 2015 ( latest shape), no rev sensors, has camera. I really only need normal electrics, but need a 13pin socket. Not sure I am up to fitting this, did fit the last one. Could you give me a price + fitting by local agent. I am in Havant and have off road parking etc. Regards Richard 023** ******

Asked by Richard Germain | 13/02/2016, 10:38 | 2 answer(s)
