Mazda CX-5 2011-2016 Brink Swan Neck Towbar

Home/Towbars/Mazda Tow bars /Mazda CX5 Towbars/Mazda CX5 (KE) 2012-2017 Towbars/Mazda CX-5 2011-2016 Brink Swan Neck Towbar

Hover on image to enlarge

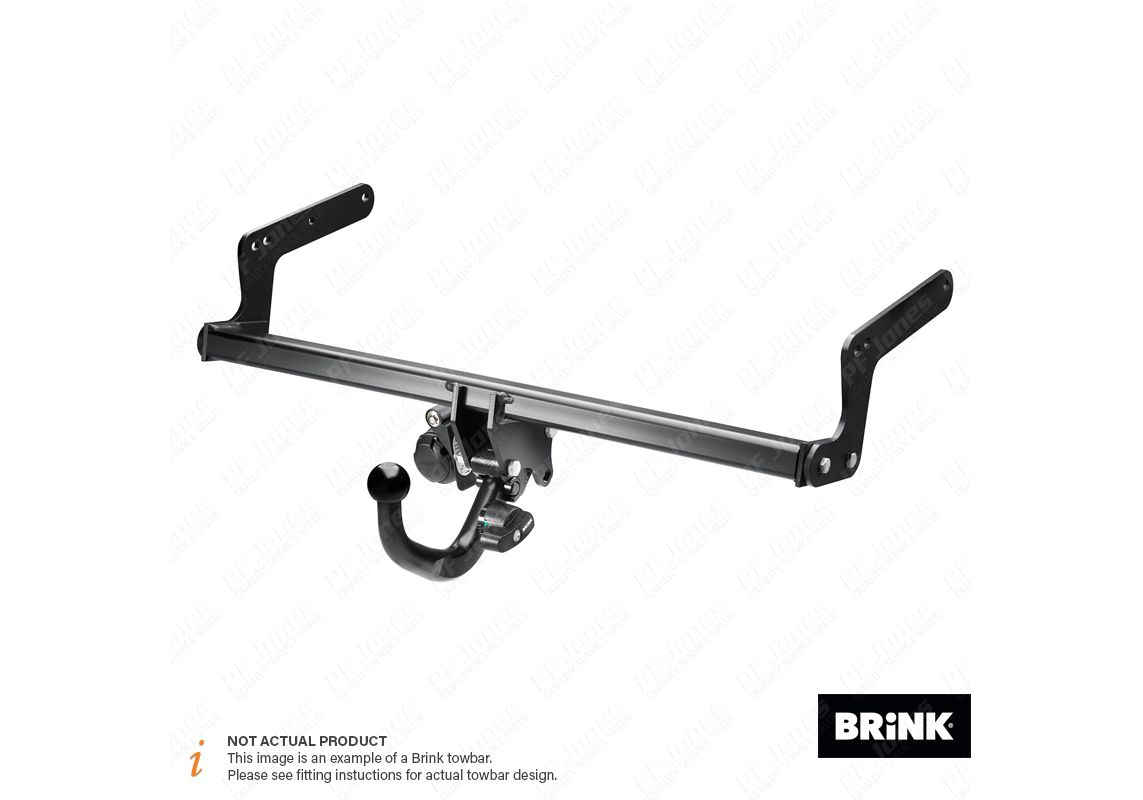

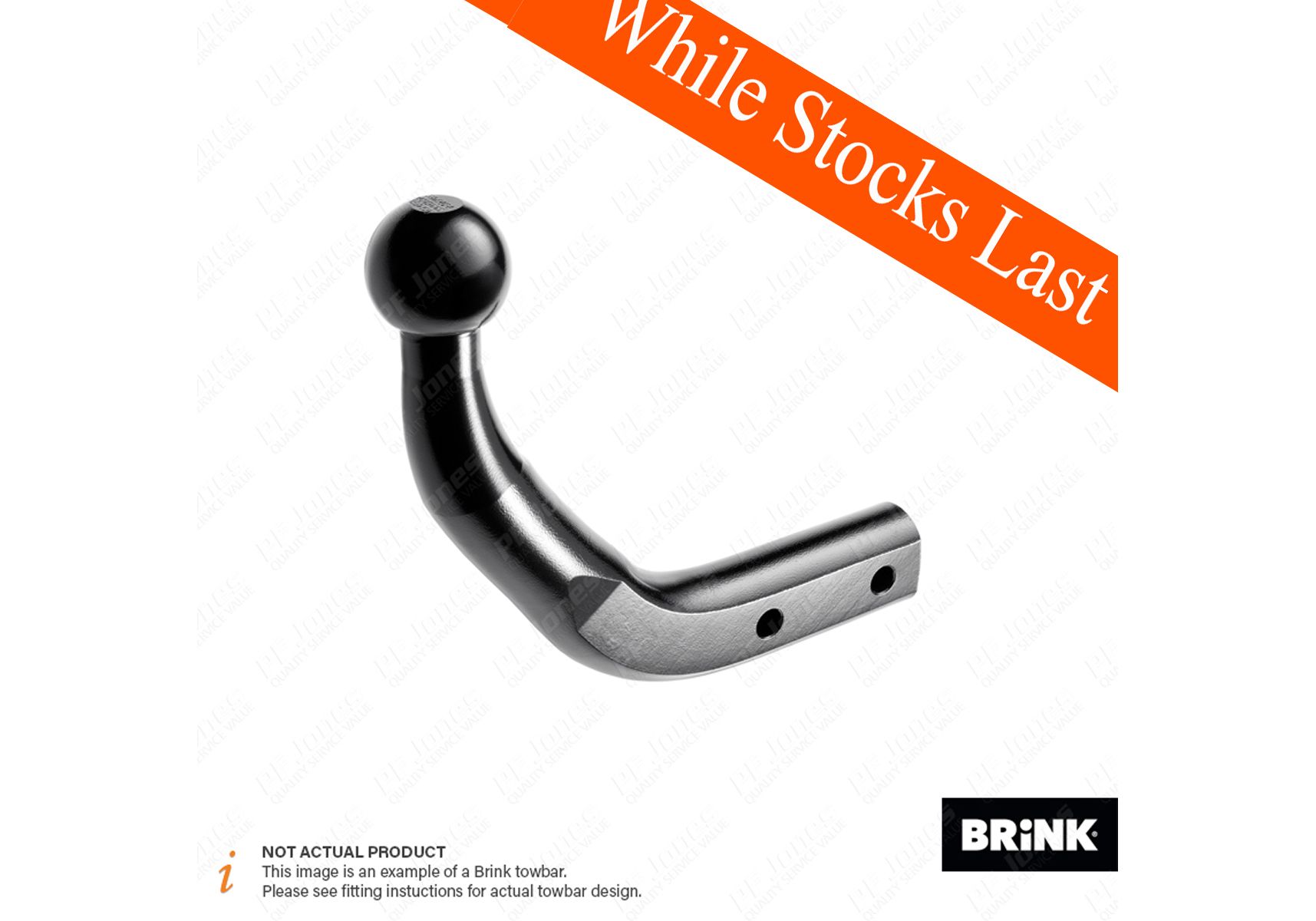

Mazda CX-5 Brink Detachable Towbar Neck Removed

Mazda CX-5 Brink Detachable Towbar Neck Fitted

CODE: 669300

Write a review

Shop our latest addition, Van Seat Covers and floor mats

Towbar Features

Electrics Coding :

Not Required

Ball Type:

Swan neck

Bumper Cuts :

Bypass Required :

Yes

Towing Weight Kg :

2100

Nose Weight Kg :

Mazda CX5 7 Pin Electrics (12-17)

7 Pin Kits

The socket has 7 pins, hence the name, if you are towing a trailer, cycle carrier or towing counterpart that needs power to lighting functions only, you will need a universal or dedicated 7 pin (12N) electrics kit.

Vehicle Specific Kits vs Universal Kits

The most obvious difference between a vehicle specific or dedicated wiring kit and a universal wiring kit is price with universal kits being cheaper in most cases.

We recommend dedicated electrics for any vehicle still under warranty as fitting universal wiring kits that do not specifically correspond with the vehicles electrical and wiring system will invalidate your manufacturer's warranty.

In most modern vehicles, a bypass relay s required when fitting universal kits to coordinate power between the vehicle and towing counterpart - we include a bypass in your kit for any vehicles that need it.

In some cases where a 7 pin dedicated kit isn't available for your car, we will provide you with an adapter so you can carry on using your trailer, cycle carrier or caravan.

Technical Key Words

We know that wiring kits can be confusing, and sometimes we use technical phrases and abbriviations that you may or may not understand. Here's our quick Technical Key Word Guide:

TP

TP or Trailer Preparation (also known as "Towing Preparation" or "Prepared Connector") just means that when your car was being made, the manufacturer added a special wiring connector specifically for towing - it is located at the rear of your car making it easier to fit the wiring kit. If you don't know if your car has TP or not, you will need to contact the car manufacturer.

Bypass

Only used on universal kits, a bypass is a box that allows the wiring to bypass the vehciles faults system when you install and cut the wiring loom on vehicles with CANBUS systems. We have included a bypass in your kit if your car requires it - make sure you buy the right year towbar to ensure you are getting the right universal electrics kit.

For a full explanation of towing electrics click here
