Bumper cuts are cut on the underside of the bumper.
None visible : the cut will not be visible unless you look up at the bumper from the ground.
Visible: the cut will be visible when standing behind the vehicle.
No cut: No cutting required.
:
Non Visible
Bypass Required
Many modern vehicles require a bypass relay for the towbar electrics to work correctly. If your vehicle requires this relay then damage can occur to the cars electrics if one isn't fitted.
Our data is collected from the tow bar and tow bar wiring manufacturers with regards to whether your vehicle needs a bypass relay.
:
No
Model Exclusions:
Zetec-S, RS, ST
Towing Weight Kg
This is the maximum weight that the vehicle can tow.
:
1500
Nose Weight Kg
This is the maximum weight that the placed on the ball, ie the average adult bike weighs around 15KG, 15 x 4 = 60 KG and a cycle for 4 bikes is around 20KG = 80KG.
:
75

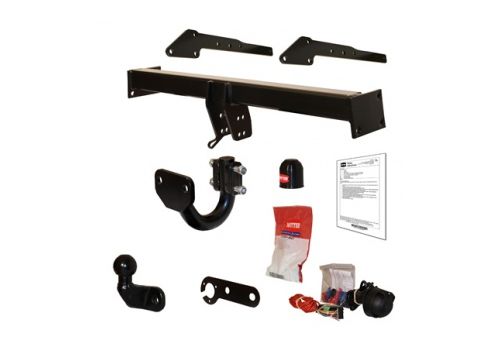

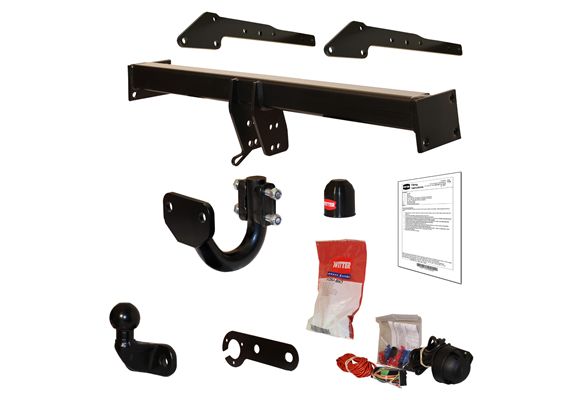

Ford Focus Hatchback 2005-2008 Witter Flange Towbar
Return and exchange As a PF Jones customer, if you no longer want the items you have 14 days to cancel your order or inform us you would like to return the goods.
Description
Ford Focus Hatchback 2005-2008 Witter Flange Towbar
Hi Kieran
On this vehicle you have to remove the bumper and then remove the bumper beam ( reinforcer ) then the towbar will slide down the chassis rails ( holes pre drilled )
and then you can store the original reinforcer in the garage and then refit the rear bumper
Kind regards
Hi there, just double checking.... will this towbar fit my 2008 Ford Focus 1.6 zetec 100 and on a scale of 1 to 10 how easy are they to fit yourself?
Kind regards,
Lee.
Asked by Lee Allinson | 22/09/2015, 12:07 | 5 answer(s)
Hi Lee, the ease of fitting depends on your ability but there is no drilling to do.
Yes it will fit but the 2008 onwards facelift models need a bypass relay fitting aswell.
Here are the fitting instructions for you to have a look at
http://www.pfjones.co.uk/witter/F99A.pdf
Kind regards
Hi Adam,
just looking at this bypass relay...
My car is a 2008 so not sure if it needs one or not, the reg is **08 *** is there any way you can see on your system?
Hi Lee, Unfortunately we can't tell from the reg number
If the car has a chrome trim on the bonnet then it is the facelift model and does require a bypass.
No chrome trim means you don't need one.
Kind regards
Thanks Adam,
One final question, I promise, my friend said rather than get the bypass relay if I pay a bit more I can get something else instead which is easier to fit....
It does have the chrome bit on the bonnet.
Hi Lee,
there is a dedicated wiring kit made for the vehicle but it's more expensive at £108 instead of £15 for a bypass and I would say it takes the same amount of time.
Here is the link for the fitting instructions for the dedicated wiring
http://www.pfjones.co.uk/Wiring_instructions/19060516RC.pdf
Kind regards
