Towing Electrics Limited Towbar electrics Charge relay TEC2

Wiring info as follows

12v Permanent fused live

0v Earth

2 Pin 2 in the 12s socket (grey)

6 Pin 6 in the 12 socket (grey)

4 Pin 4 in the 12s socket (grey)

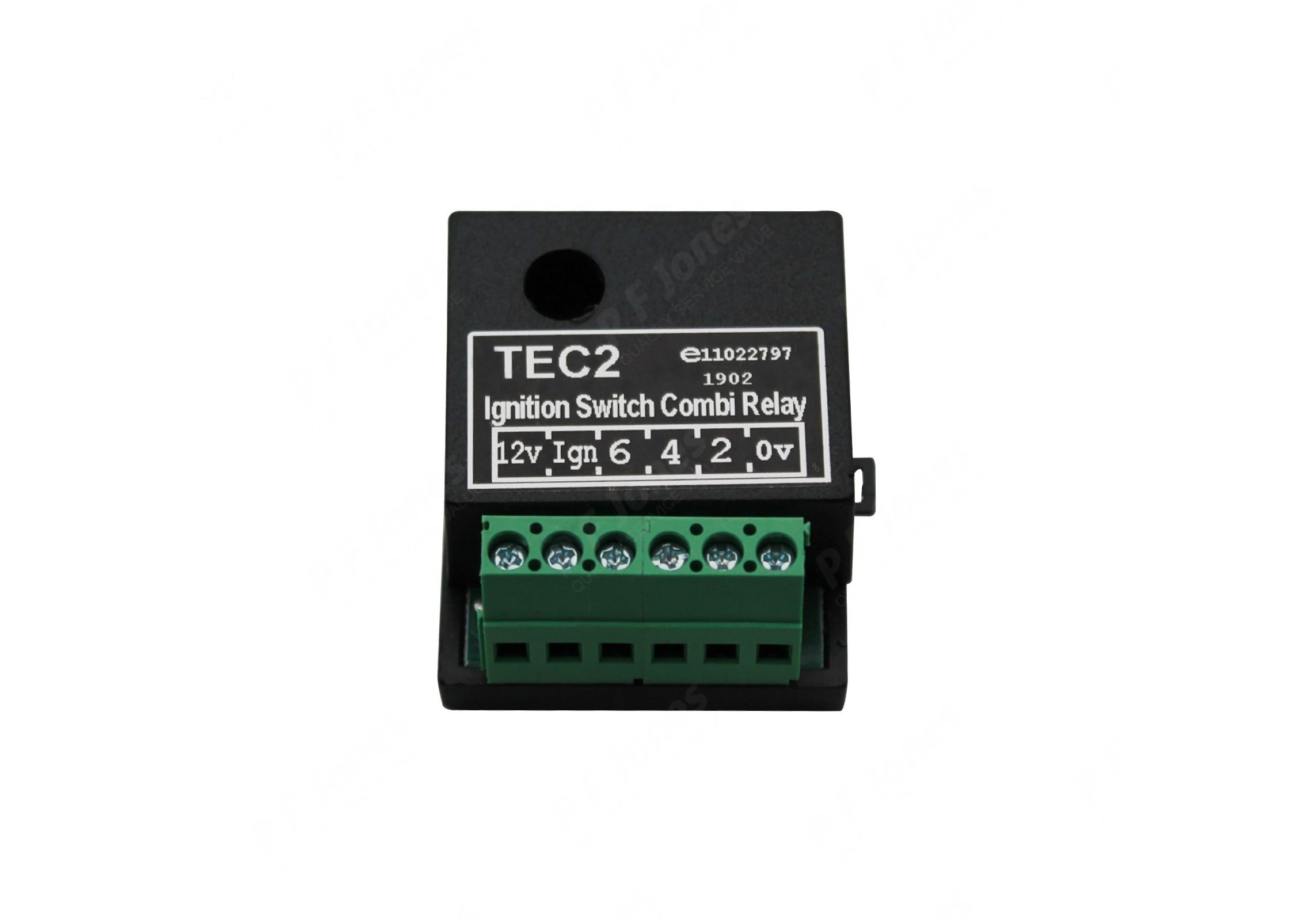

High Output Combination Caravan Relay with automatic monitoring and switching of supply from car to caravan through double (split charge) relays.

Features

• Very compact but powerful efficient design, giving the largest output in the smallest package
• Automatic monitoring of voltage and current availability from car’s alternator/battery
• No separate signal wire necessary
• Able to switch up to 30a continuously when available from car’s alternator/battery
• Adjustable factory set voltage trip with narrow band hysteresis
• Over temperature protection
• Line voltage drop compensation
• Low voltage drop (around 0.1v) at rated output
• Very high quality micro miniature 30a relays
• Fully snubbed for EMC compliance
