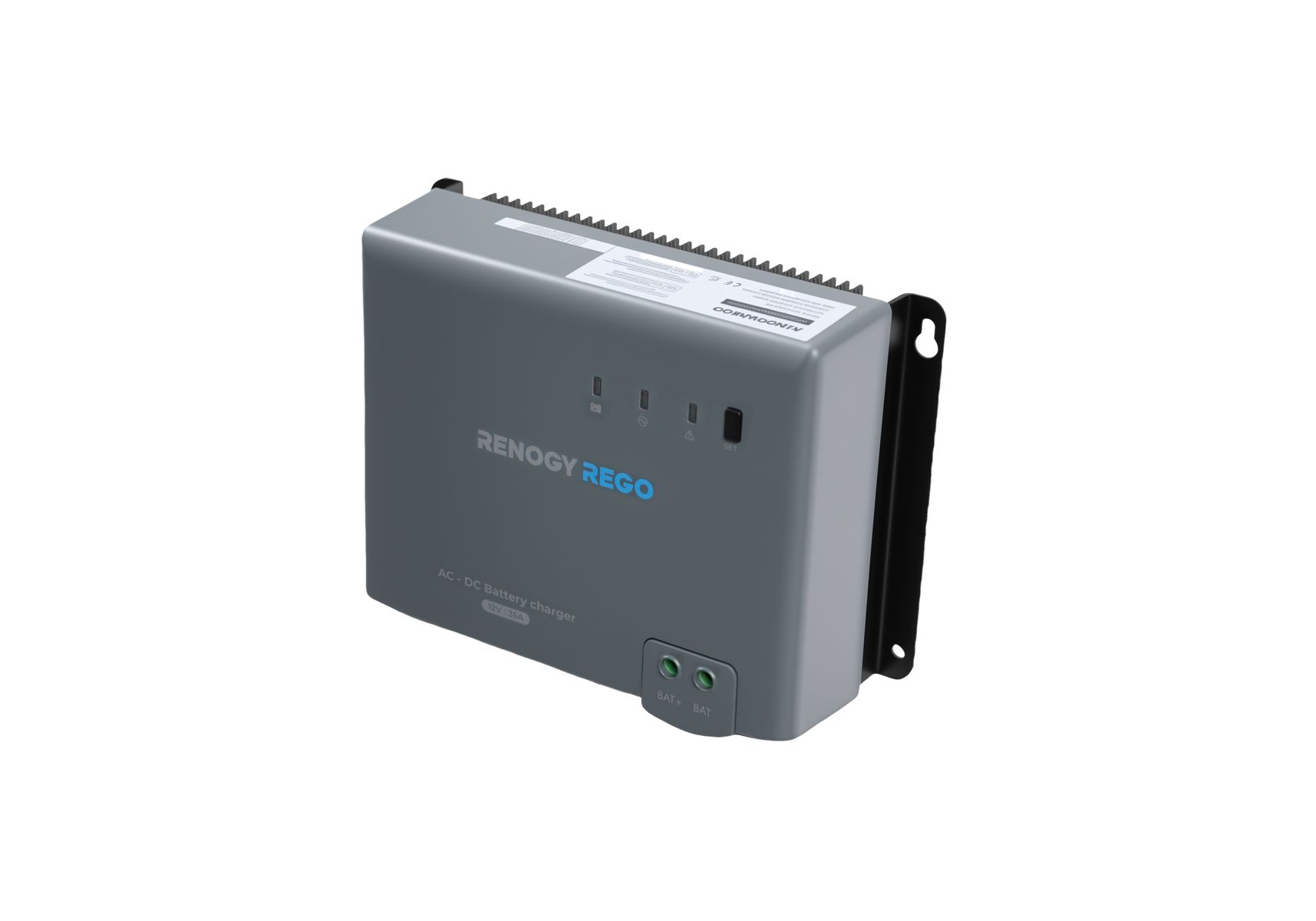

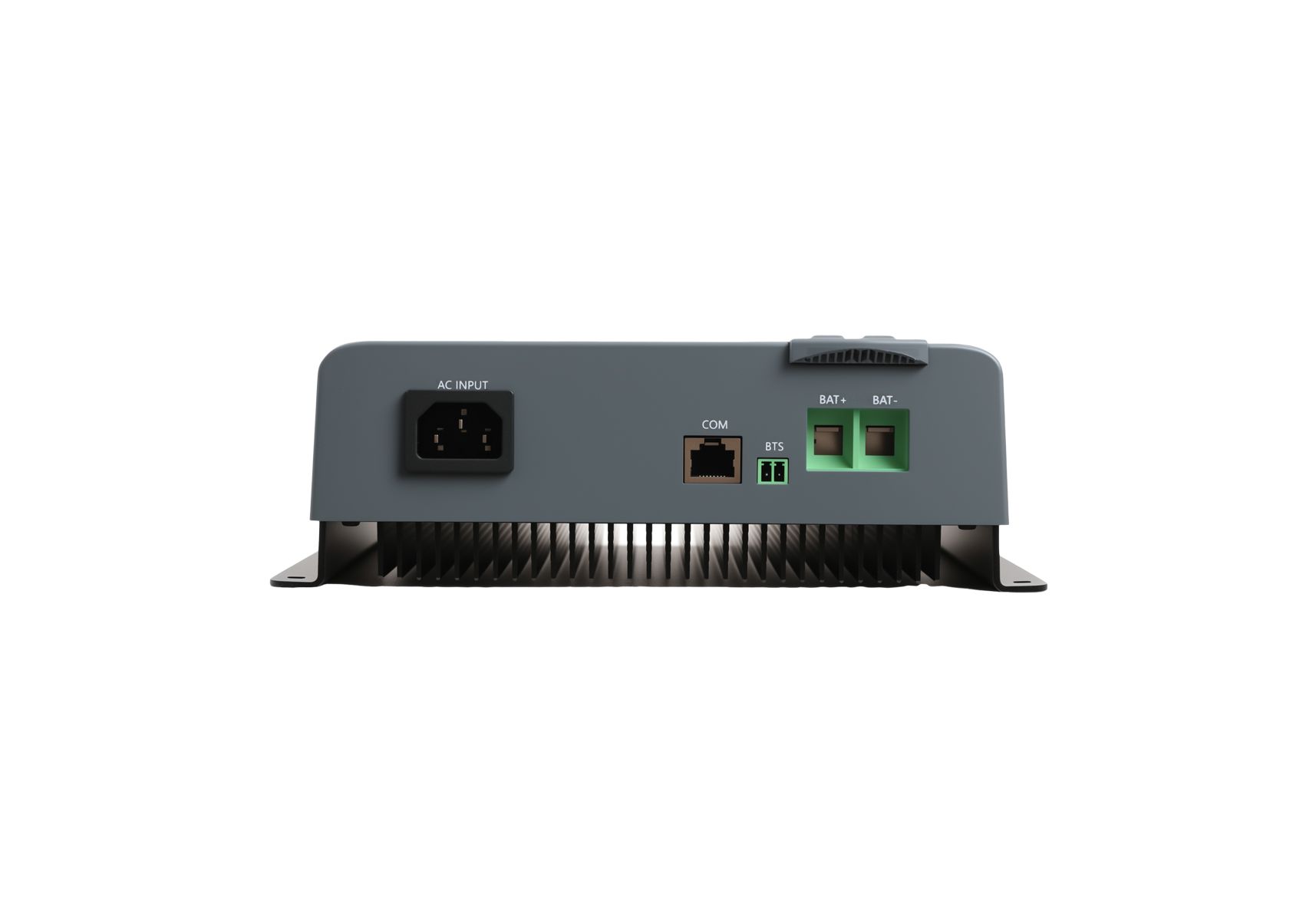

Renogy Rego 12V 35A AC-DC Battery Charger
Renogy Rego 12V 35A AC-DC Battery Charger
REGO 12V 35A AC-DC Battery Charger is designed to efficiently charge a wide range of 12V battery types using an intelligent four-stage charging algorithm. It delivers stable and reliable charging performance while helping extend battery life.
Built-in electronic protections safeguard the charging process against common electrical risks. When paired with the optional BT-2 Bluetooth module, users can monitor real-time operating status, review charging data, and adjust parameters remotely via the Renogy App.
Multi-Type Battery Compatibility
Supports Lithium, AGM, Gel, Flooded, SLD, and user-defined batteries for flexible system setups.
Intelligent 4-Stage Charging
Utilizes a four-stage charging profile (Bulk / Absorption / Float / Equalization) to optimize charging efficiency and help prolong battery lifespan.
Comprehensive Safety Protections
Built-in protections for over-voltage, over-current, over-temperature, low-temperature, short-circuit, and reverse connection.
Clear LED Status Indicators
LEDs display charging stage, battery status, and fault notifications for quick checks.
Bluetooth Monitoring Capability
Optional BT-2 module provides real-time monitoring, data access, and parameter adjustment via the Renogy App.
| Battery Type | AGM/SLD, GEL, FLD, LI, User |
| Rated Charging Power | 510W |
| Input Voltage Range | 180 to 264VAC, 45Hz to 65Hz |
| Self Consumption | <5W |
| OperatingTemperature | -4°F to 140°F / -20°C to 60°C |
| Storage Temperature | -22°F to 176°F / -30°C to 80°C |
| Dimensions (mm) | 228 x 160 x 72 |
| Weight (KG) | 3 |
| Certification | CE, CA65, RCM |
