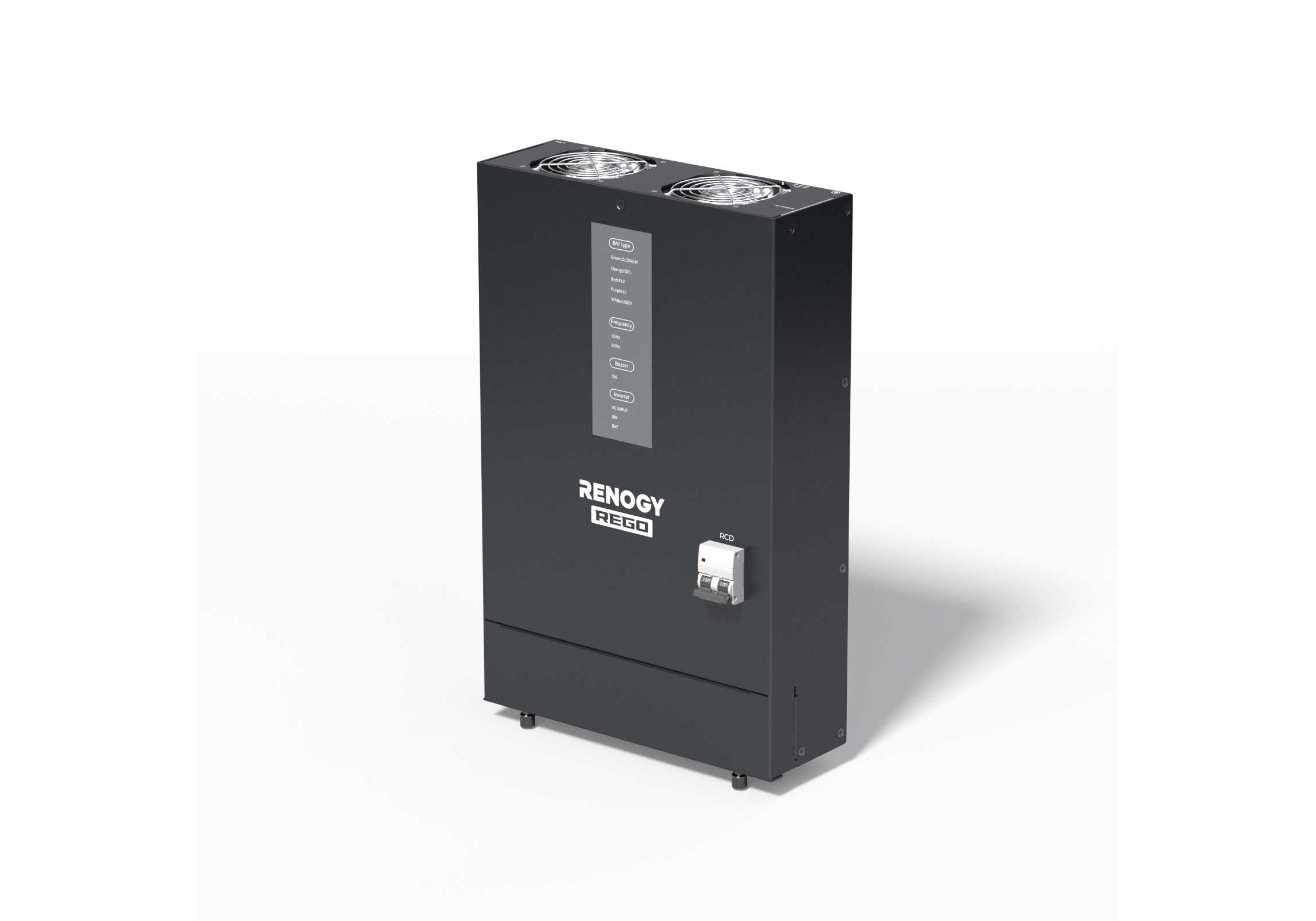

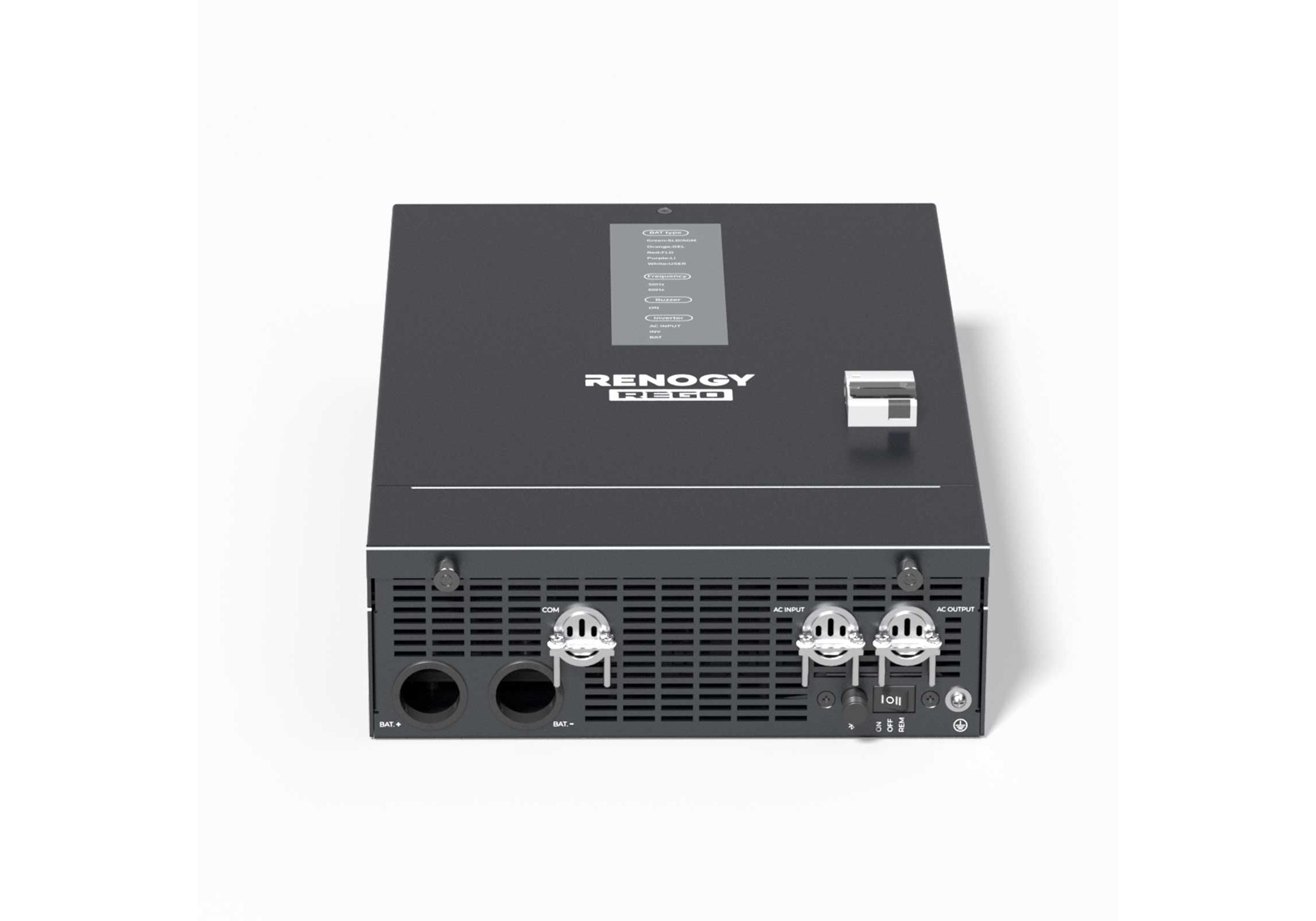

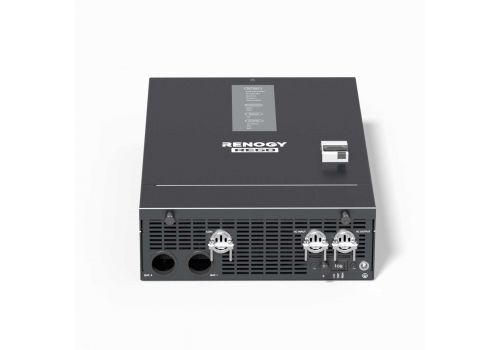

Renogy Rego 12V 3000W HF Inverter Charger

Designed to keep sensitive electronics safe and functional wherever you go, REGO 12V 3kW High-Frequency Inverter Charger outputs utility-like power with a peak efficiency of 91% and low total harmonic distortion. When connected to both the grid and a battery, the inverter charger can deliver up to 30A for high-powered appliances, such as heaters and dryers.

With a rapid 20ms transfer time, the unit provides a seamless power supply that protects your critical appliances from interruptions. The inclusion of Bluetooth and CAN connectivity makes it easy to remotely track power usage via the Renogy App and Renogy ONE Core.

High Conversion Efficiency

REGO 3kW inverter charger provides grid-quality AC power with total harmonic distortion (THD) under 3% and peak conversion efficiency up to 91%, allowing sensitive electronics such as laptops and CPAP machines to run flawlessly off the grid.

Uninterrupted Power Supply

Switch from the grid to the connected battery within 20ms to ensure critical appliances operate smoothly. This smart inverter charger can also start a connected gas generator automatically to keep loads running when the battery voltage is low.

Customizable Charging

Fine-tune your inverter charger settings to match your off-grid power needs, including:

• Battery types
• Output frequency
• Charging current
• Input priority

Hybrid Charging

Provides up to 30A of power output for high-current drawing appliances when connected to both the grid and a battery.

Remote Monitoring

Integrated with Bluetooth and CAN connectivity to connect to Renogy ONE Core, allowing for energy monitoring and control when you are away from the main unit.

Residual Current Device (RCD)

Automatically cuts power during potential leakage faults to prevent shocks, fires, and damage.

Features

Nominal Input Voltage	12VDC
Input Voltage Range	11 to 15.8VDC
Output Voltage	230VAC
Output Waveform	Pure Sine Wave
Output Frequency Range	50/60Hz (Configurable)
Continuous Output Powe	3000W
Peak Power	9,000W (@100ms) / 4,500W (@5s) / 3,600W (@10s)
Self Consumption	<30W
Inverter Efficiency	91%
Operating Temperature Range	-4°F to 140°F / -20°C to 60°C
Storage Temperature Range	-40°F to 158°F / -40°C to 70°C
Dimensions (mm)	512.4 x 308 x 132
Weight (kg)	8.8
Certification	CE, R10, UKCA, RCM
