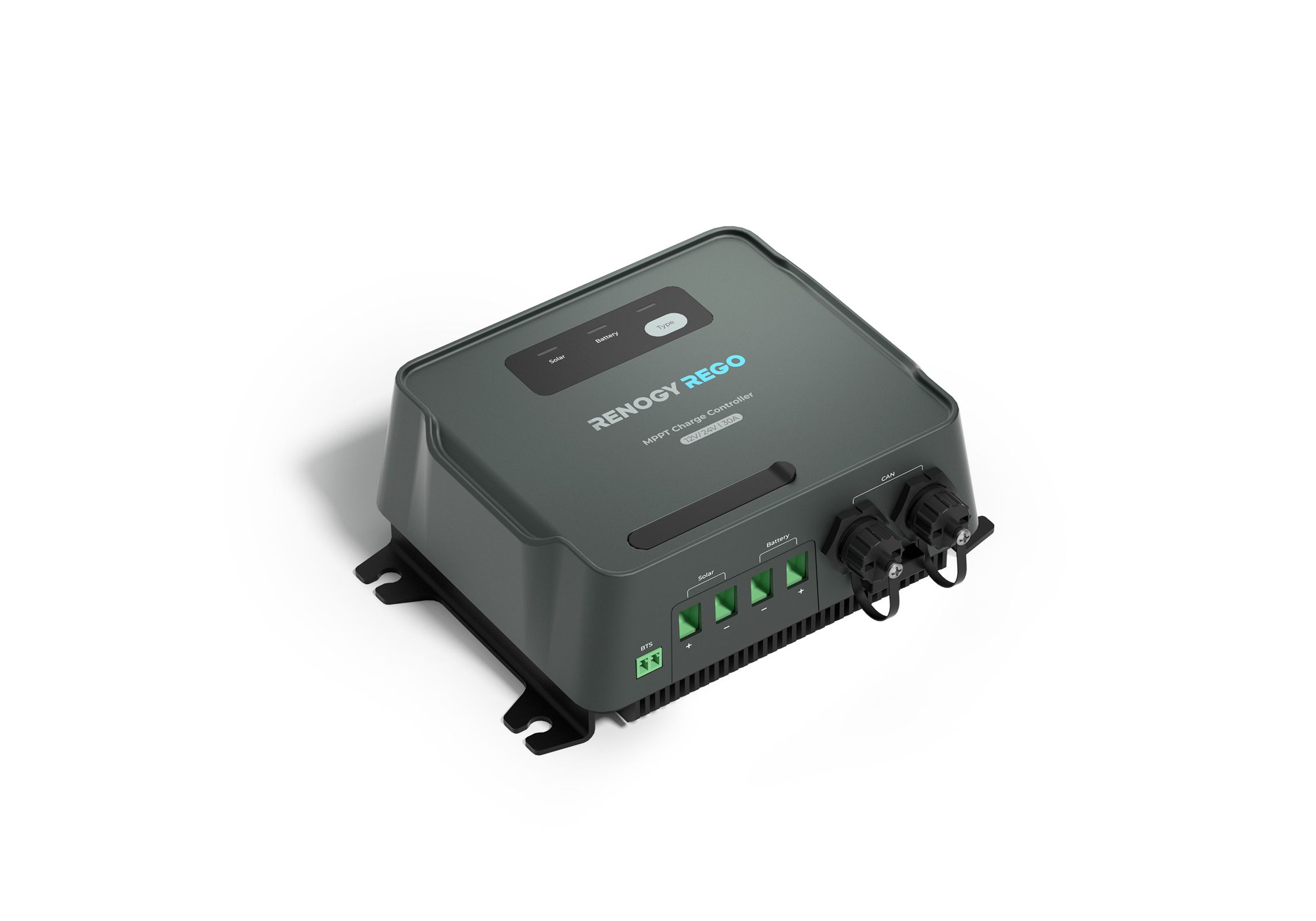

Renogy Rego 12V/24V 30A MPPT Solar Charge Controller
Renogy Rego 12V/24V 30A MPPT Solar Charge Controller
REGO 12V/24V 30A MPPT charge controller delivers high-efficiency solar charging for 12V and 24V battery systems.
Compatible with AGM, Flooded, Gel, and Lithium batteries, it supports Bluetooth and RV-C wired connectivity for real-time system monitoring, data access, and easy settings configuration.
Designed for compact installations, the controller features comprehensive electronic protections and reliable performance across a wide operating temperature range. Built with an IP32-rated enclosure, it is well-suited for RV electrical bays, protected marine compartments, and off-grid power enclosures where stable operation is required.
High-Efficiency MPPT Charging
Maximizes energy conversion for 12V and 24V battery systems.
Bluetooth & RV-C Monitoring
Supports Bluetooth and RV-C wired connection to manage power and ensure reliable performance.
Wide Operating Temperature
Designed for −22°F to 149°F / −30°C to 65°C, supporting full-load operation up to 113°F / 45°C.
Broad Battery Compatibility
Works with AGM, Flooded, Gel, and Lithium batteries.
Compact & Durable Design with Protections
Includes safeguards against overcharge, overcurrent, short circuit, and overtemperature, suitable for RVs, vans, boats, and off-grid installations.
| Battery Type | AGM, GEL, FLD, LI, User |
| System Voltage | 12/24V |
| Rated Charge Current | 30A |
| Input Voltage Range | 16 to 100VDC |
| Self Consumption | ≤1W/12V, ≤1W/24V |
| OperatingTemperature | -22°F to 149°F / -30°C to 65°C (Full Rated Output up to 45°C) |
| Storage Temperature | -31°F to 167°F / -35°C to 75°C |

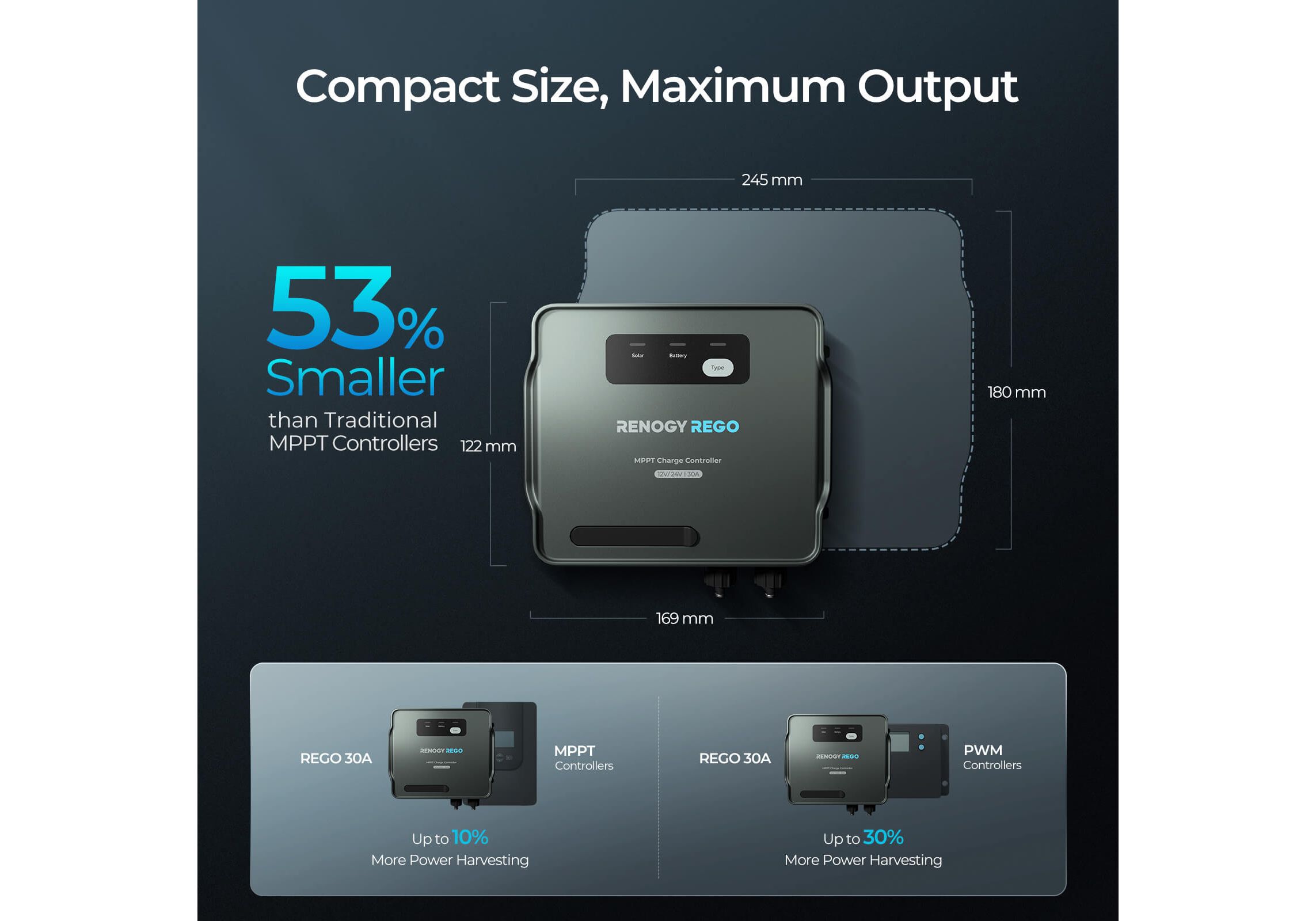

| Dimensions (mm) | 169 x 122 x 60 |
| Weight (KG) | 3.6 |
| Certification | CE, R10, FCC, RCM |
