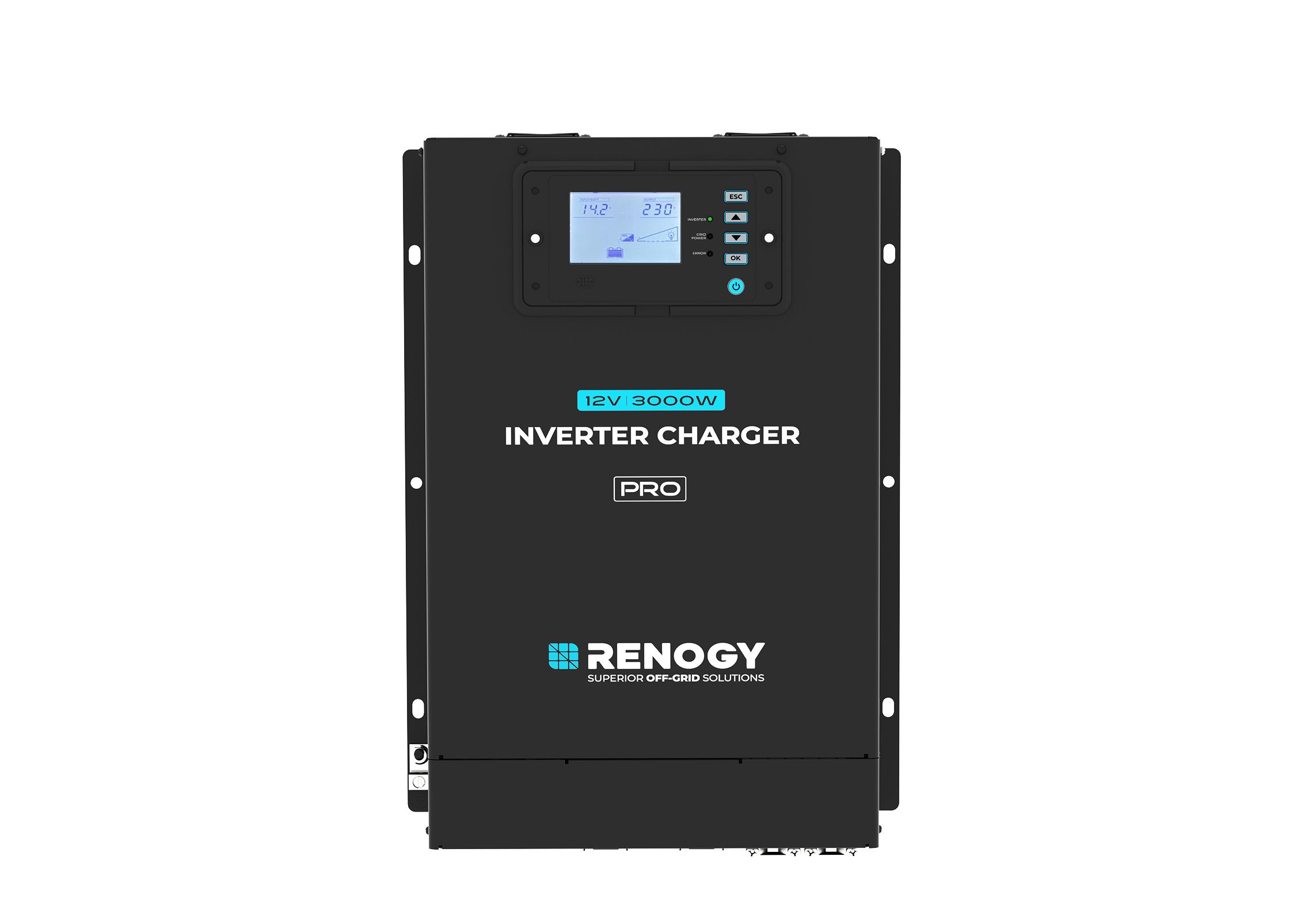

Renogy Pro 12V 3000W HF Inverter Charger

The 12V Pro Series High-Frequency Inverter Chargers combine pure sine wave and multi-stage charging in a compact design. They efficiently convert DC power to AC with 91% peak efficiency.

When grid-connected, they easily recharge various battery types, including lithium, GEL, and AGM. With versatile connectors and communication protocols, installation and system integration are quick and simple.

High Conversion Efficiency

Under 4% total harmonic distortion (THD) for clean, grid-like power. 91% peak conversion efficiency with low standby energy use (<10W).

Uninterrupted Power Supply

Switch from the grid to the connected battery within 20ms to ensure critical appliances can operate.

Customizable Charging

• Battery types
• Output frequency
• Charging current
• Lithium battery activation

Detachable LCD Screen

Removable for easy monitoring and adjustments from a convenient location.

Residual Current Device (RCD)

Automatically cuts power during a leakage fault to prevent shock, fire, and damage.

N-G Bonding

Provides a single grounding point to prevent ground loops and electric shock, minimizing the risk of inverter charger faults.

Manufacturer Warranty

12 Months

Features

Nominal Input Voltage	12VDC
Input Voltage Range	10.5 to 15.5VDC
Output Voltage	230VAC
Output Waveform	Pure Sine Wave
Output Frequency Range	50/60Hz (Configurable)
Continuous Output Powe	3000W
Peak Power	6,000W (@100ms), 4,500W (@3s), 3,600W (@35s)
Self Consumption	<10W
Inverter Efficiency	91%
Operating Temperature Range	-4°F to 122°F / -20°C to 50°C
Storage Temperature Range	-22°F to 158°F / -30°C to 70°C

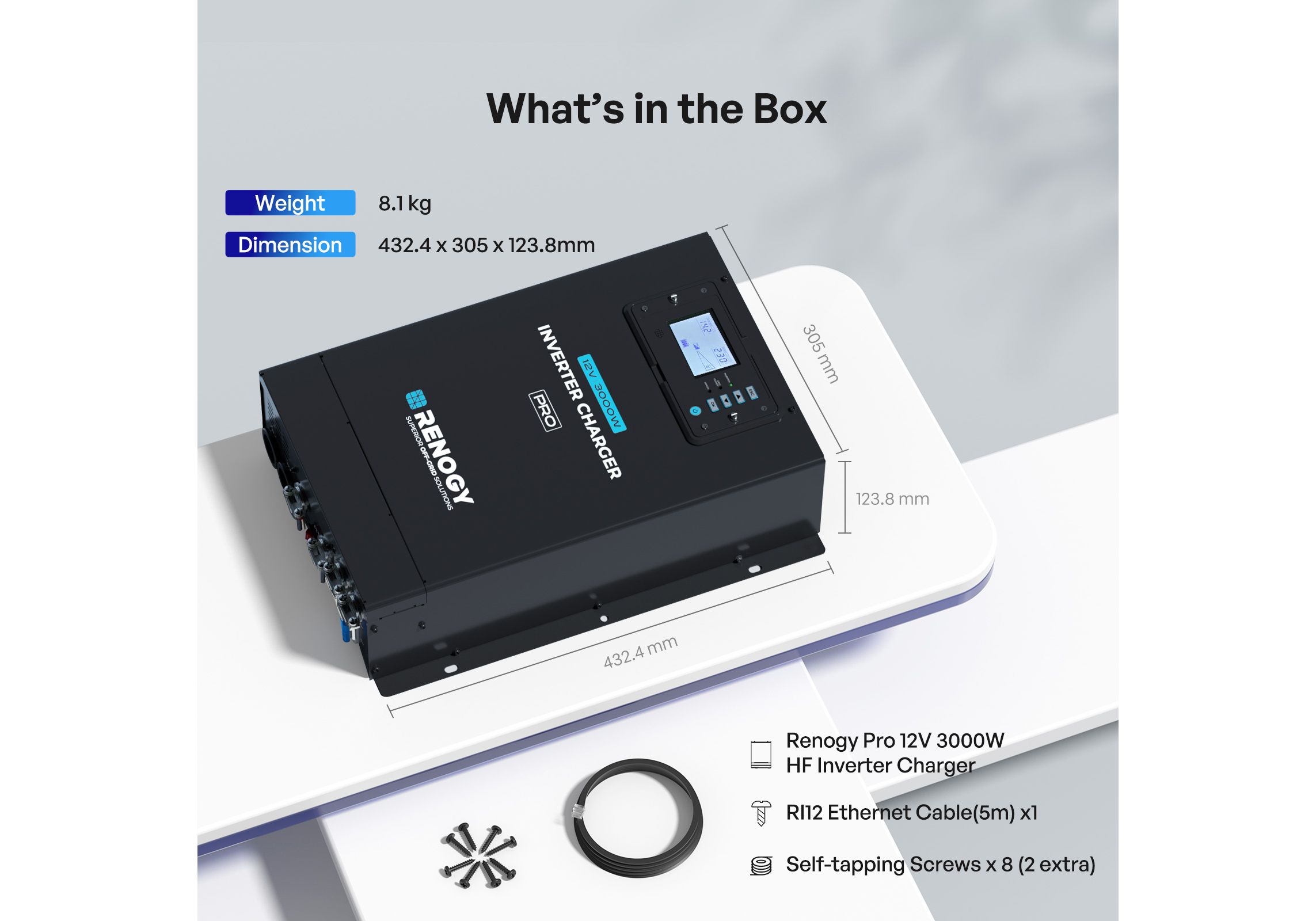

Dimensions (mm)	432.4 x 305 x 123.8
Weight (kg)	7.9
Certification	CE, R10, UKCA
