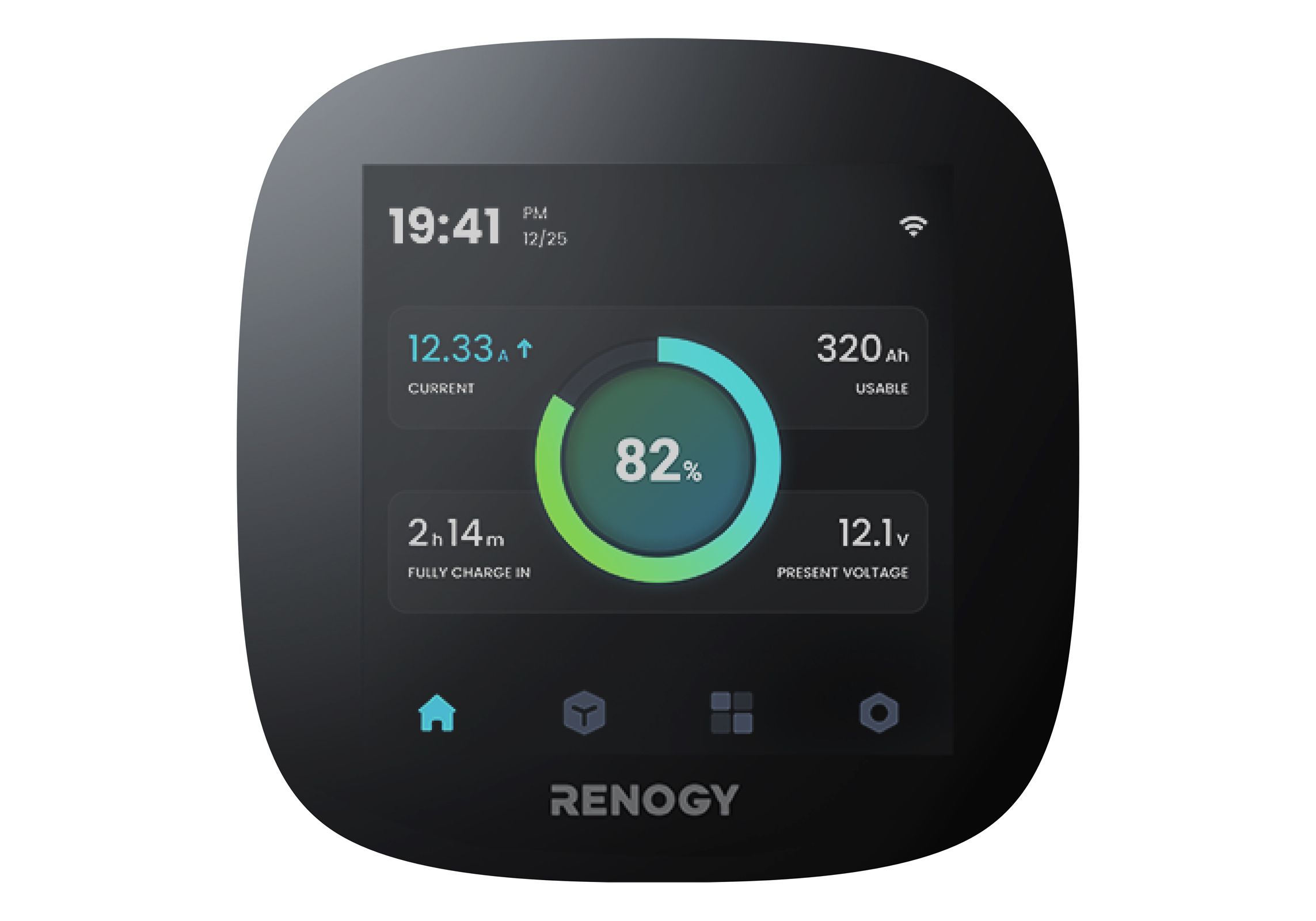

Renogy ONE Core 4" Power System Monitor
Renogy ONE Core 4" Power System Monitor
Renogy ONE Core provides a comprehensive solution for energy monitoring and analysis, enabling users to monitor and analyze energy data at any time.
Thanks to the ONE Connect 2.0 technology, Renogy ONE Core allows energy monitoring both locally through the built-in screen and remotely via Renogy ONE Portal and Renogy app.
Additionally, the ONE Core features an RV levelling system for optimal stability and can function as a smart home hub, seamlessly connecting with other smart home appliances.
24/7 Energy Analysis
Monitor and analyze energy data anytime.
Worldwide Monitoring
Remote energy monitoring anywhere through ONE Connect 2.0
Built-in RV Levelling (Applicable for Regions Outside the U.S.)
Effortlessly adjust your RV’s position to achieve optimal stability and comfort.
Smart Home Integration
Function as a central hub for your smart home, seamlessly connecting and controlling all your smart home appliances.
Easy Installation
Simple setup process that ensures the device is perfectly level, eliminating the need for repeated adjustments.
Over-the-Air (OTA) Updates
Stay up to date with the latest features and improvements through continuous over-the-air updates.
| Size/Resolution | 4 Inch / 480p x 480p |
| Touch Screen | Yes |
| Operating Voltage (Power Port) | 8V to 35V DC (Typical 12V) |
| Operating Voltage (USB C) | 5V DC |

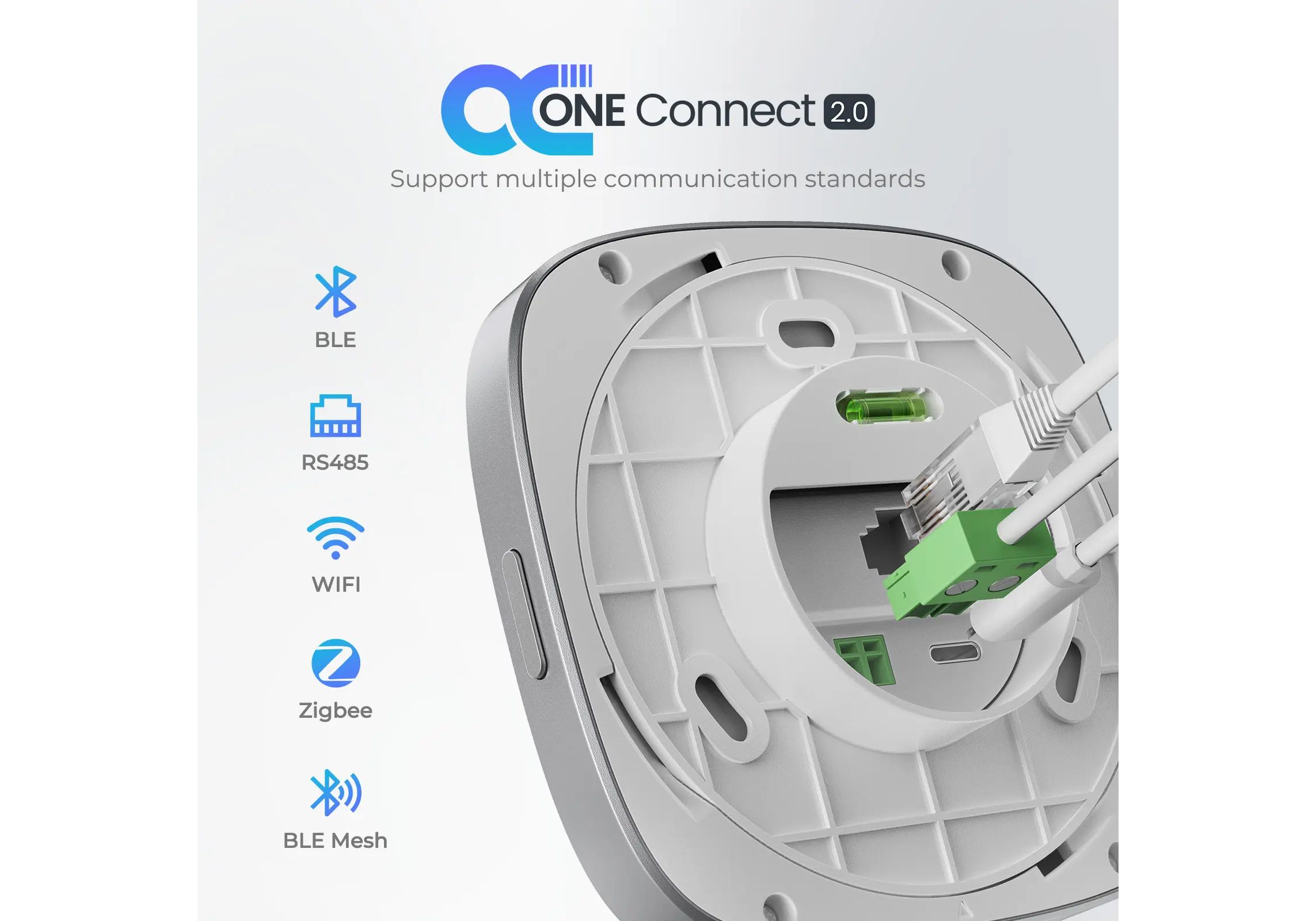

| Communication | Wi-Fi (IEEE 802.11b/g/n 2.4 GHz and 5 GHz) Bluetooth LE and Bluetooth Mesh Zigbee 3.0 (IEEE 802.15.4) Wired RS-485 and CAN |
| Operating Temperature | -4°F to 158°F / -20°C to 70°C |
| Installation | Flush Mounting |
| Dimensions (mm) | 106 x 106 x 26.6 |
| Weight (KG) | 0.128 |
| Certification | CE, FCC, RoHS, TSCA, BQB, RCM, IC-ID |
