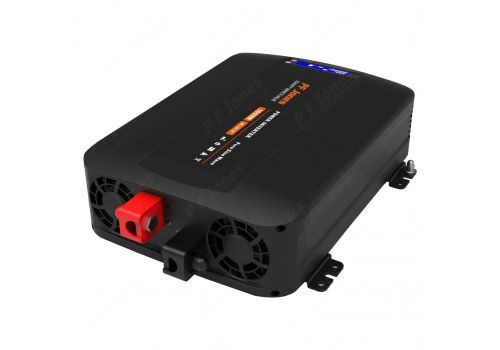

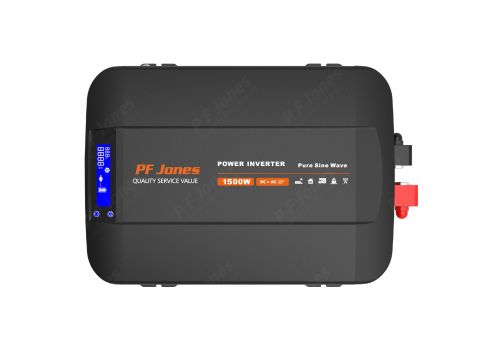

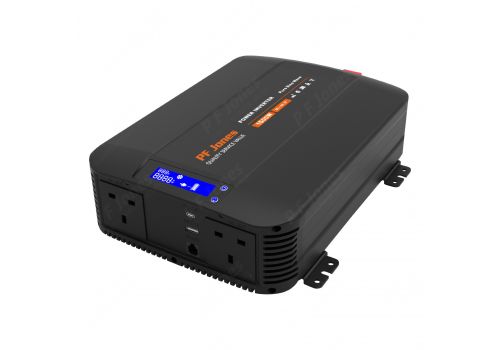

1500W 12V DC to 240V AC Pure Sine Wave Voltage Inverter Includes Remote Control
Hover on image to enlarge
PFJ1500P-12V-V3
Inverters
Sine Wave:
Pure Sine
Volts:
12 V
Watts:
1500 W
Description
1500W 12V DC to 240V AC Pure Sine Wave Voltage Inverter Includes Remote Control
PF Jones power inverters are compact and lightweight, once installed onto your 12V system you get the use of a UK 3 pin socket providing 230V AC power giving you a constant power supply for running your mains electrical appliances and chargers.
| Model: | PFJ1500P-12V-V3 | - |
| Rated Output Power | 1500W | Continuous Stable Output |
| Peak Output Power | 3000W | Duration <1s |
| Output Waveform | Pure Sine Wave | Stronger Load Capacity |
| DC Input Voltage | 10-16V | Wide input voltage range |
| Maximum DC Input Current | 82A | Strong Adaptability |
| AC Output Voltage | 230V | +/- 10% |
| AC Output Frequency | 50Hz +/- 1 | - |
| Efficiency | Half Load >/= 90% (full load >/= 88%) | Full load/Half load efficiency |
| Over-Temp Protection | Internal temp >/= 75C automatic shutdown, resumes when =/< 45C | 5 beeps, fault code E-3 |
| Output Current-Limiting Protection | 2250W-3000W | 1.5 to 2 times rated output power |
| Short Circuit Protection | Output short-circuit protection with instantaneous trip | 6 beeps, fault code E-5 |
| Output Overload Protection | 1575W-1800W | 11 beeps, fault code E-4 |
| Reverse Polarity Protection | Built-in fuse | protect the inverter |
| Cooling | Fan starts at temp >/= 45C, Fan stops at temp =/< 40C | - |
| Operating Ambient Temp | -10C - +45C | Adequate ventilation required |
| Storage Temp | -20C - +70C | - |
| Protection Rating | IP21 | Complies with IEC 60529 |
| Dimensions | 310 x 255 x 83 | LxWxH (mm) |
| Weight | 3.68 Kg | Net Weight |
| Mounting | Desktop / Wall mounted | - |
| Remote LCD | Input-Voltage Output-Voltage Load Power Tmperature Fault Code | Push Button |
| Output Socket | UK socket | x 1 |
| USB Output | USB Type A USB Type C | x1 each (5V 3A/9V 3A/12V 3A) |
