Range Rover Classic 94-97 Cycle Carrier 3/4 bikes ZX98

Range Rover Classic 94-97 Cycle Carrier 3/4 bikes ZX98
CODE: ZX98

Quantity:

Price: £76.34

Price includes VAT

Add to wish list

Carrier Type: Towbar Mounted

Brand: Witter

Foldable: NO

How many cycles: 3 to 4

Tiltable: NO

Country

State/Province

Zip/postal code

amount of product

Range Rover Classic 94-97 ZX98 Cycle carrier 3/4 bike carrier

For vehicles with a rear door mounted spare wheel (Maximum rear overhang 110mm Maximum capacity 65kg)

Components

Column Support Bracket

Column R

Cycle Support Arms

Retaining Strap

Bungee Straps

Self Adhesive wear strip

Dust Cap

		Installation And Assembly

1		Check that all of the components listed above are contained in the box

2		Mount column support bracket (A) between the towbar and the towball (if fitted) with the vertical tube on the right hand side, using the M16 coupling bolts supplied with the towbar. The torque settings for these bolts is 252Nm (172 lbs/ft).

3		Locate column (B) into column support bracket (A) with the buttons directly above one of the holes on the column support bracket tube and press the uppermost of the two spring buttons on the bottom of the column. This allows the column to drop and "click" into place. The lower spring button must be visible in the hole (X) in the column support bracket (A) for the column to be secure. Note: The column is identical at both ends and therefore does not have a specific top or bottom.

4		Locate the support arms (C) onto the column (B) and press the lower of the two spring buttons allowing the support arms (C) to drop and "click" into place. As before, the upper spring button must be visible in the hole in the support arms (C) for these to be secure.

5		Attach buckle of retaining strap (R) to the welded D Ring on the carrier arms (C), by passing the buckle through the metal loop and then through the strap loop, as shown, and pull tight.

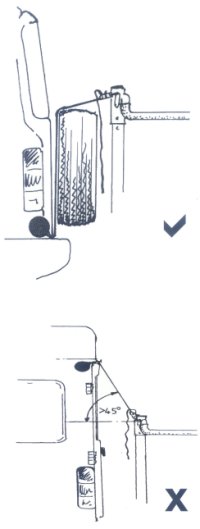

6		Attach the padded tube of the retaining strap (R) to the vehicle by "trapping" the padded tube either inside the vehicle door, boot or hatch, as shown. A 01 transparent self adhesive wear strip (T) is supplied to stick to the vehicle where the strap passes over the edge of the vehicle bodywork to prevent chaffing of paint work. Where the carrier is fitted to a vehicle with tall vertical doors and the angle of the strap to the horizontal exceeds 45 degrees, the strap should be passed (and trapped) through and NOT over the doors.

7		When securely attached, tension the retaining strap to take up all of the slack prior to loading any cycles. Secure the loose end of the strap by wrapping it around the carrier arms and tie off through the metal loop. This will prevent possible chaffing of the cycles due to the loose strap "flapping" at speed.

8		The carrier is now ready for attaching the cycles. See sheet 2 for recommendations of usage. Note: When 2 or less cycles are being carried the use of retaining strap (R) is not essential

		Carrier Removal Instructions

1		(After removal of cycles) De-tension retaining strap (R) and separate the two halves by pulling the strap through the metal buckle

2		Attach buckle of retaining strap (R) to the welded D Ring on the carrier arms (C), by passing the buckle through the metal loop and then through the strap loop, as shown, and pull tight.

3		Remove column (B) by depressing the visible and upper of the two spring buttons and lift up column (B) whilst the button is depressed.

4		Fit the moulded weather cap (W) to prevent the ingress of dirt and dust.
